The VS02E-443 folds down to a 60mm profile at rest and extends out to 382mm on a two-section arm built from 30x20x1.2mm square steel tube, the same tube-and-pivot construction principle used across the VSYS full-motion range, scaled to the 23″-65″ economy class. The asymmetric +3/-10 degree tilt range, rather than a symmetric window, reflects that most displays in this size class already sit close to eye level, where downward correction matters more than upward.
Economy tier here means a 3x strength-test standard instead of the 4x used on the fixed and tilt range, and single-stud rather than dual-stud installation, both appropriate for the lighter 30kg weight class this model targets. The compact folded depth is what lets it read as nearly flush-mounted until the arm is actually extended for viewing.
The VS02E-443 suits secondary and mid-tier displays where post-install viewing-angle flexibility matters more than maximum weight capacity: meeting rooms with seating on both sides of a table, reception and lobby displays that need to angle toward different traffic flows, and retail counters where staff reposition the screen throughout the day. Its compact folded profile also fits tighter spaces where a bulkier full-motion arm wouldn’t clear.
Where the project needs a higher weight rating, dual-stud installation, or the 4x strength-test standard, the VSYS standard-tier full-motion range should be specified instead of this economy model.
The wall plate mounts to a single wall stud or solid wall using the included hardware, a lighter installation standard than the dual-stud requirement on heavier VSYS mounts, appropriate for this model’s 30kg class. Integrated cable clips along the arm keep leads managed through the full tilt, swivel, and extension range. A pre-installed direction indicator speeds up alignment during mounting.
| Product Category | Full-Motion TV Wall Mount |
| Build Class | Economy |
| Material | Steel |
| Arm Construction | 30x20x1.2mm Square Steel Tube |
| Metal Sheet Thickness | VESA Panel: 1.8mm; Wall Plate: 2.5mm; Extension Arm: 1.2mm |
| Surface Finish | Powder Coating, Fine Texture Black |

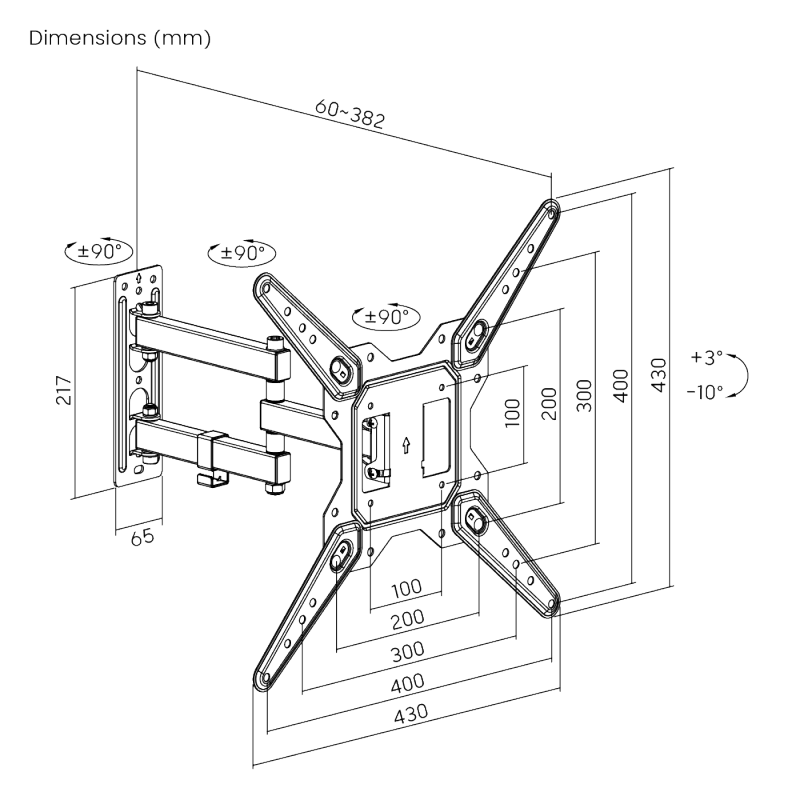

| Dimensions | 382 x 430 x 430mm (15″ x 16.9″ x 16.9″) |
| Fit Screen Size | 23″-65″ |
| Curved Panel Compatible | Yes |
| Mounting Hole Pattern | VESA Only |
| VESA Compatibility | 100×100, 100×200, 200×100, 200×200, 300×200, 400×200, 300×300, 400×300, 400×400 |
| Maximum Mounting Hole Spread | 400 x 400mm |
| Weight Capacity | 30kg (66lbs) |
| Strength Test Rating | 3x rated capacity |
| Extension Range | 60mm to 382mm (2.4″ to 15″) from wall |
| Tilt Range | +3 degrees / -10 degrees |

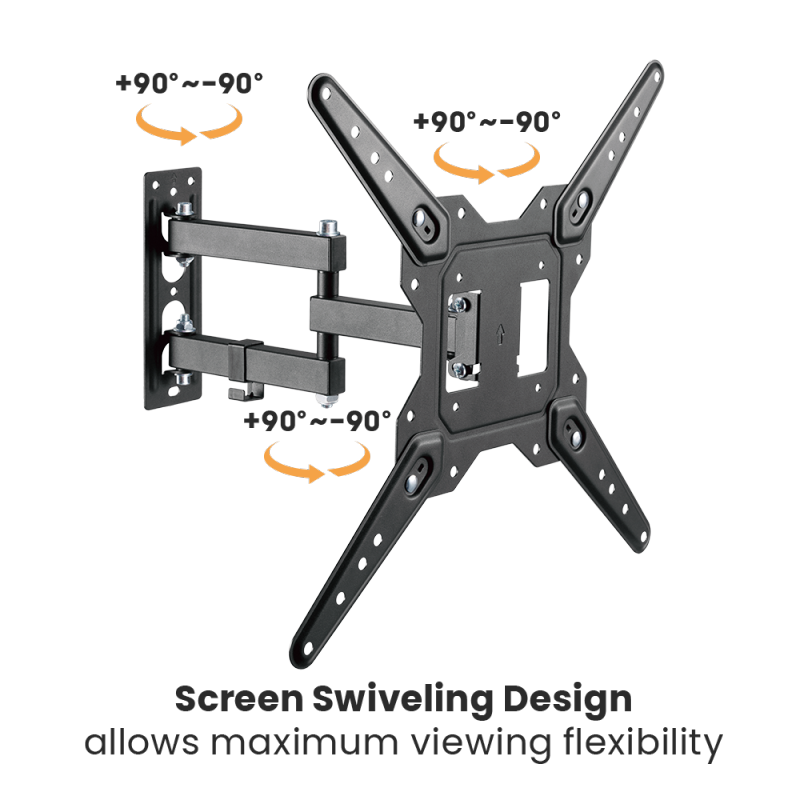

| Swivel Range | +90 degrees / -90 degrees |
| Wall Compatibility | Solid wall or single stud |
| Panel Attachment | Detachable panel bracket |
| Direction Indicator | Yes |
| Cable Management | Yes, integrated cable clips |

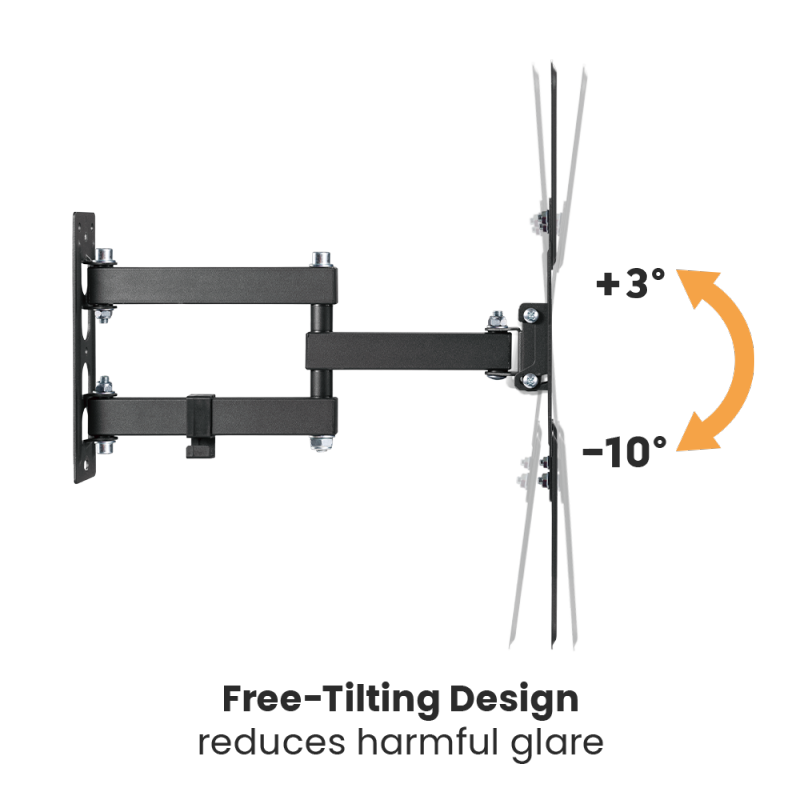

The asymmetric range reflects real-world mounting: displays in the 23″-65″ class typically sit close to eye level already, so the extra downward correction matters more than upward tilt. Most viewing-angle problems at this size come from a slightly high mounting position, not a low one.

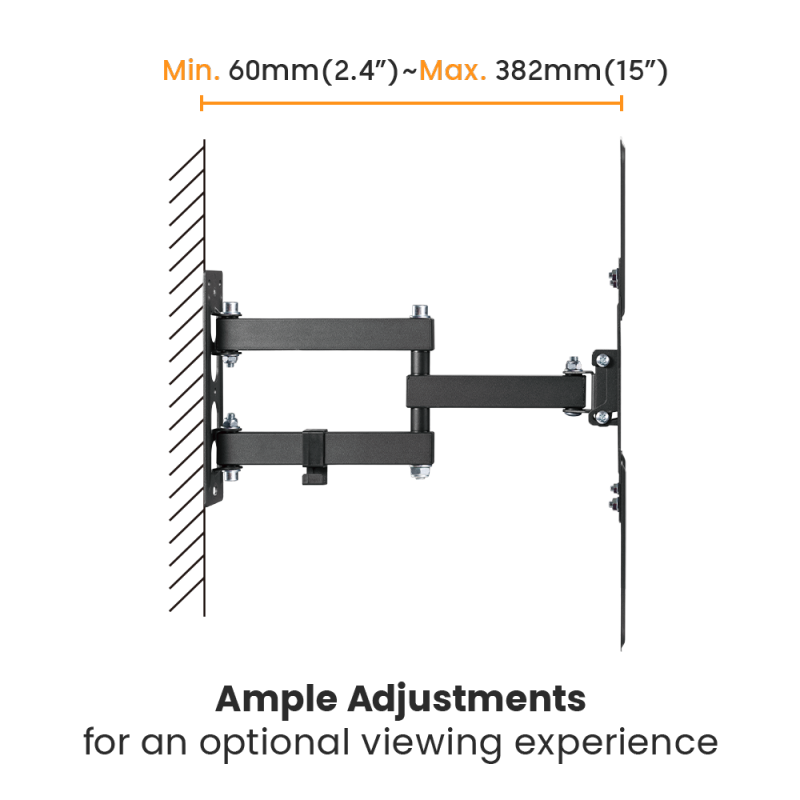

From 60mm at rest up to 382mm fully extended, on a two-section folding arm. At the folded position the display reads as nearly flush-mounted, and the full extension gives clearance for rear cable access or an angled viewing position.
3x is the economy-tier standard for this weight class and mount type, reflecting the lighter 30kg rating and single-stud installation. It’s still a validated, tested safety margin, just calibrated to a different product tier than the heavier-duty fixed and tilt range.
No, single wall stud or solid wall installation is sufficient for this model’s 30kg weight class, unlike the dual-stud requirement on heavier VSYS full-motion mounts. This lighter installation standard is one of the tradeoffs of the economy tier, matched to the lower rated weight.
Up to a 400x400mm maximum hole spread, covering nine total VESA patterns from 100x100mm through 400x400mm, which spans most displays in the 23″-65″ size class. Confirm the target display’s exact VESA spec against its own datasheet before specifying this model.
Professional installation is available UAE-wide on request, though this lighter-weight, single-stud model is more approachable for a confident DIY install than the heavier VSYS full-motion mounts. Request installation through the same quote form or WhatsApp used for pricing.
