The VS01E-44F is the compact sibling of the VS01E-46F, sized for the 32″-75″ screen class with a 440mm-wide wall plate instead of 650mm and a VESA floor extending down to 75x75mm, a pattern common on smaller commercial panels that the wider economy mount’s 200x200mm floor doesn’t reach. That narrower plate isn’t a cut-down version of the larger economy mount, it’s sized correctly for its target panel range, avoiding the unnecessary wall-plate footprint a 650mm plate would leave on a 32″-40″ display.
One consequence of the smaller plate: double-stud installation is rated at 406mm spacing only, not the wider 406/450/600mm range the larger fixed mounts in the VSYS range support. On a solid wall this doesn’t apply, but for stud-wall installs, 406mm spacing needs confirming before this model is specified.
Specify the VS01E-44F for 32″-75″ displays under 45kg where a compact wall-plate footprint matters: smaller meeting rooms, reception displays, and secondary screens where a full-width 650mm plate would be visually oversized for the panel. Its VESA floor down to 75x75mm also makes it the correct fit where the target display’s mounting pattern falls below the wider economy mount’s 200x200mm minimum.
Where the project’s stud spacing isn’t confirmed at 406mm and can’t be adjusted, plan for a solid-wall installation or specify a mount rated for wider stud spacing instead.
Wall fixing is solid wall or double-stud at 406mm spacing only, narrower than the 406/450/600mm range on the larger VSYS fixed mounts, a direct result of the compact 440mm wall plate. This model ships without an integrated bubble level, so bring a separate one for the wall-plate step. Given the panel sizes this model supports, professional installation is recommended and available UAE-wide on request.
| Product Category | Fixed TV Wall Mount |
| Build Class | Economy |
| Material | Steel, Plastic |
| Surface Finish | Powder Coating, Fine Texture Black |

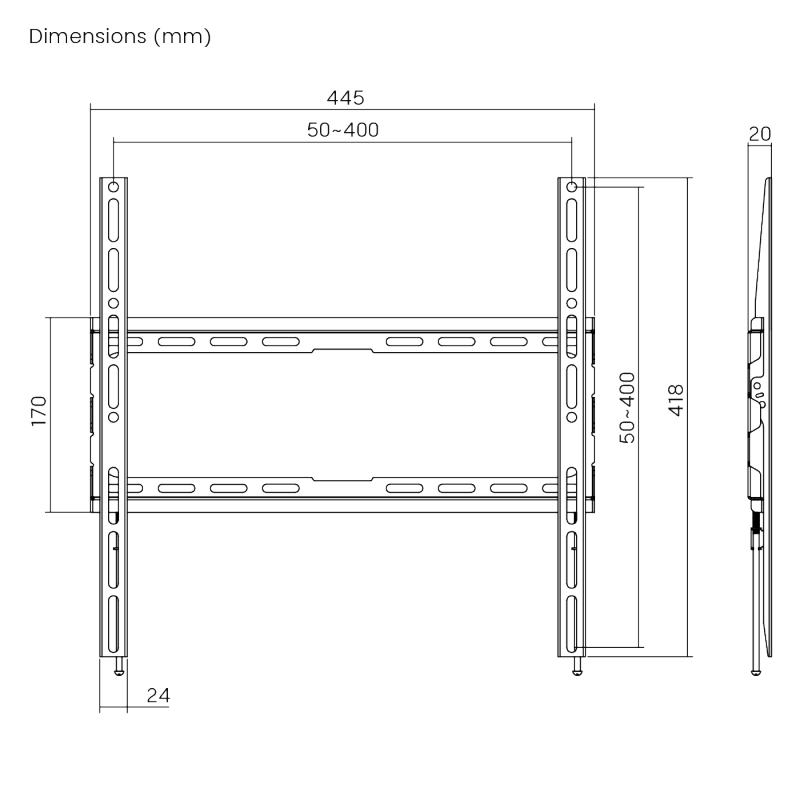

| Dimensions | 20 x 440 x 418mm (0.79″ x 17.3″ x 16.5″) |
| Fit Screen Size | 32″-75″ |
| Curved Panel Compatible | No |
| VESA Compatibility | 75×75, 100×100, 100×150, 150×100, 100×200, 200×100, 150×150, 200×200, 200×300, 300×200, 200×400, 400×200, 300×300, 300×400, 400×300, 400×400 |
| Maximum Mounting Hole Spread | 400 x 400mm |
| Weight Capacity | 45kg (99lbs) |
| Strength Test Rating | 4x rated capacity |
| Standoff Profile | 20mm (0.79″) from wall |
| Wall Compatibility | Solid wall or double-stud, 406mm spacing |
| Wall Plate Type | Fixed (non-articulating) |
| Panel Attachment | Detachable panel bracket |
| Cable Management | No |
| Direction Indicator | No |
| Packaging | Compartment polybag |
Same 45kg rating and economy build class, but sized for a smaller 32″-75″ screen range with a narrower 440mm wall plate instead of 650mm, and a VESA floor down to 75x75mm instead of 200x200mm, sized correctly for its target panel range rather than a cut-down version of the larger mount.
406mm only, on a double-stud installation. This is narrower than the 406/450/600mm range on the larger VSYS wall mounts, a direct consequence of this model’s compact 440mm wall plate, which doesn’t have the width to reach a wider stud pair. On a solid wall this limit doesn’t apply.
No, curved-panel compatibility isn’t available on this economy-tier model. The bracket geometry is engineered for flat panels within the 45kg weight class, matching the same limitation on the wider VS01E-46F economy mount rather than being specific to this smaller size class.
75x75mm, the smallest in the VSYS fixed-mount range, specifically to cover smaller commercial and consumer panels the wider economy mount (VS01E-46F) doesn’t reach with its 200x200mm floor. Sixteen total mounting patterns are covered up to a 400x400mm maximum hole spread.
Yes, given the panel sizes this model supports, professional installation is recommended and available UAE-wide on request. Request it through the same quote form or WhatsApp used for pricing and availability on the VS01E-44F, with installation available as an option alongside the mount itself.
