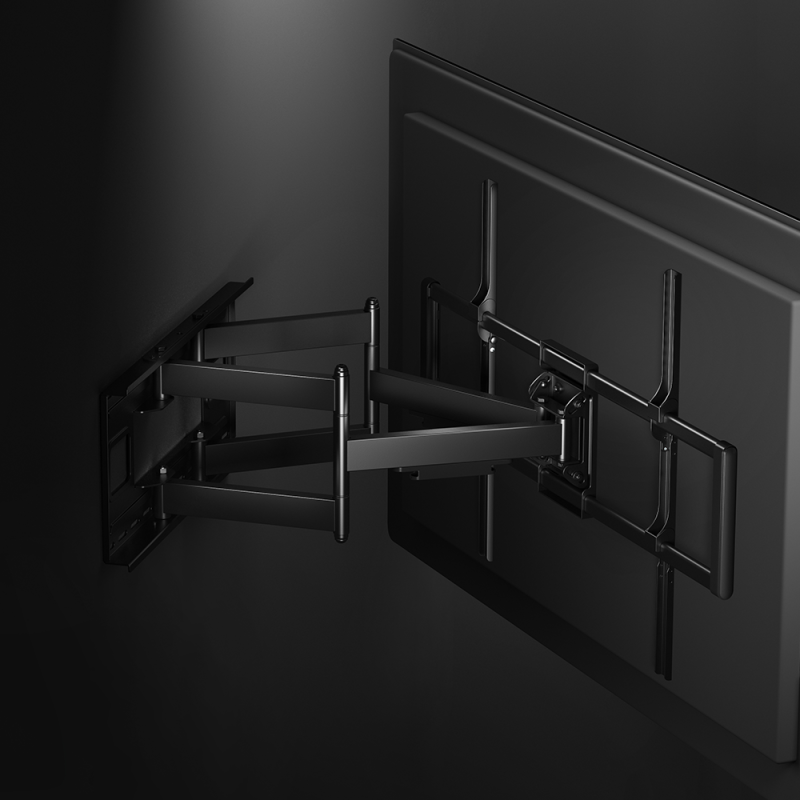

A full-motion arm carries its load through extension, not just through a flat bearing surface against the wall, which changes the engineering problem entirely from a fixed or tilt mount. VSYS builds the VS02D-696’s arms from 50x25x1.5mm square steel tube rather than the flat bracket steel used across the fixed and tilt range, carrying the same bending load with a better strength-to-weight ratio at full 703mm extension, at the cost of the arm’s articulation only being possible with a tube-and-pivot structure rather than a single rigid plate.
That’s also why the strength-test standard here is 3x rated capacity (a 360kg static equivalent) rather than the 4x standard on the fixed and tilt range: the testing multiplier reflects the difference between a static fixed load and a load carried through a moving articulated arm at full extension, the harder engineering case to certify.
The 60″-120″ range and 120kg rating put the VS02D-696 in large-format video wall, control room, and auditorium-display territory: installations where the panel needs to be pulled forward for rear service access, swiveled for multi-angle viewing from different zones of a room, or tilted to correct for above-eye-level mounting height, sometimes all three on the same panel. Its integrated cable management also suits larger, more permanent commercial installations where a clean cable run matters more than on a lighter fixed mount.
Where a project’s displays don’t need post-install motion, a fixed or tilt mount at the appropriate weight class is the lower-part-count, lower-maintenance specification instead.
Wall fixing matches the standard VSYS range, solid wall or double-stud at 406mm, 450mm, or 600mm spacing, despite the significantly higher 120kg rating: the load path through the mount’s own arm and wall-plate engineering carries the extra capacity, not a different wall-fixing standard. Given the size and weight involved, professional installation is strongly recommended and available UAE-wide on request.
| Product Category | Full-Motion TV Wall Mount |
| Build Class | Standard |
| Material | Steel |
| Arm Construction | 50x25x1.5mm Square Steel Tube (2″ x 0.98″ x 0.059″ wall) |
| Surface Finish | Powder Coating, Fine Texture Black |

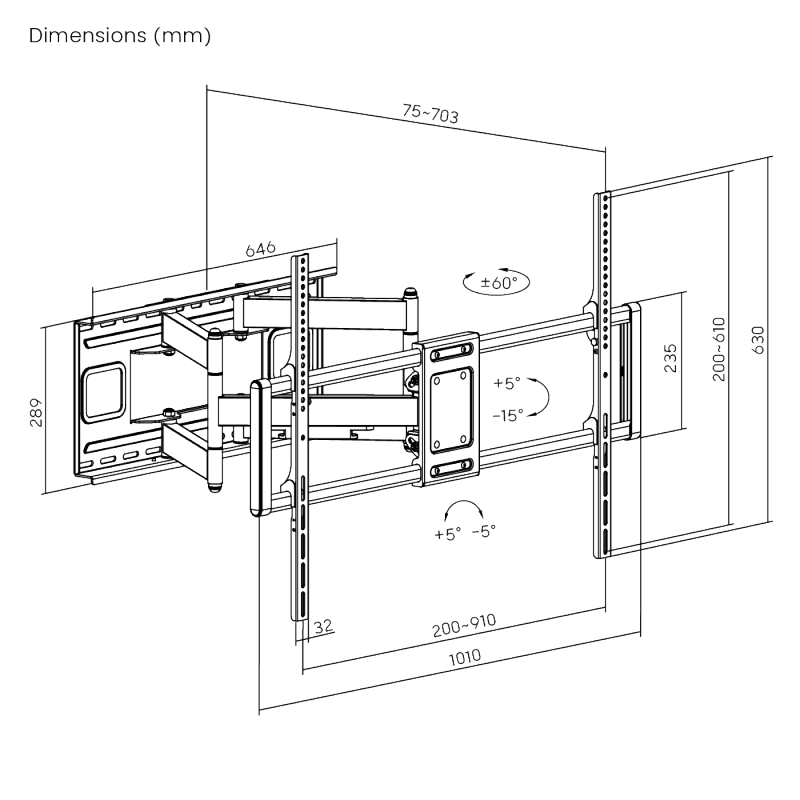

| Dimensions | 703 x 1010 x 630mm (27.7″ x 39.8″ x 24.8″) |
| Fit Screen Size | 60″-120″ |
| Curved Panel Compatible | Yes |
| Mounting Hole Pattern | VESA Only |
| VESA Compatibility | 200×200, 300×200, 400×200, 300×300, 400×300, 400×400, 600×400, 800×400, 800×600, 900×600 |
| Maximum Mounting Hole Spread | 910 x 610mm |
| Weight Capacity | 120kg (264lbs) |
| Strength Test Rating | 3x rated capacity |
| Extension Range | 75mm to 703mm (3″ to 27.7″) from wall |

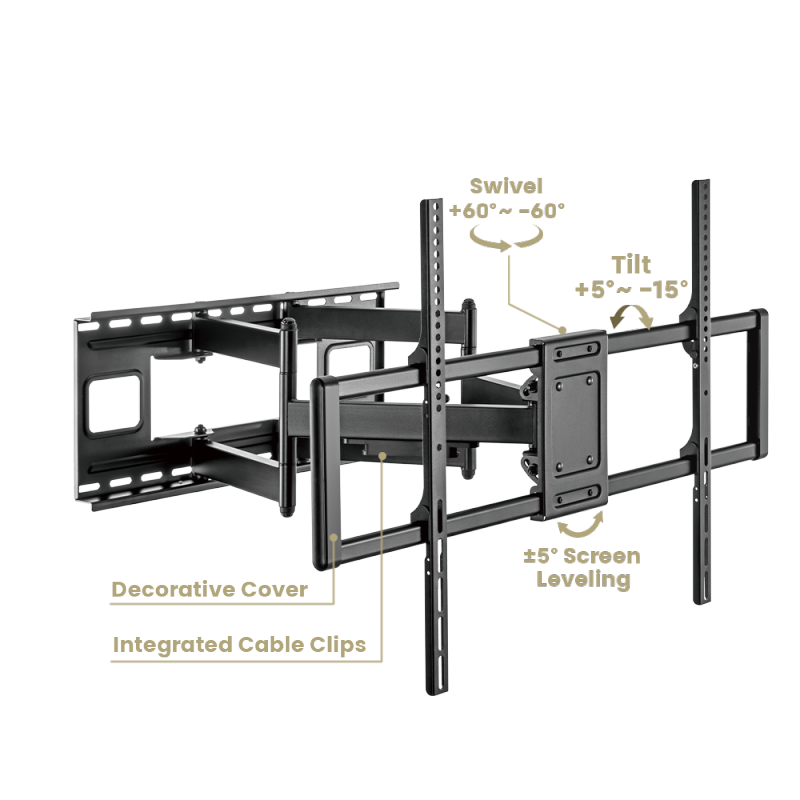

| Tilt Range | +5 degrees / -15 degrees |
| Swivel Range | +60 degrees / -60 degrees |
| Screen Leveling | +5 degrees / -5 degrees |
| Wall Compatibility | Solid wall or double-stud, 406mm / 450mm / 600mm spacing |
| Cable Management | Yes, integrated |
| Alignment Aid | Hook-on bubble level, included |
| Direction Indicator | Yes |
3x reflects the harder engineering case of a load carried through an articulated arm at full 703mm extension, versus the static load a fixed mount carries against a flat wall plate. Both multipliers represent a real, validated safety margin, calculated against the specific mechanics of that mount type rather than a single blanket standard.
The ±60 degree swivel rating applies at the mount’s full 703mm extension, not just in the retracted position close to the wall. This matters for corner installations and multi-angle viewing setups where the panel needs to swing well off its resting position and stay there under its own weight.
Up to a 910x610mm maximum hole spread, covering VESA patterns up to 900x600mm, the widest range in the VSYS wall-mount lineup. Ten total mounting patterns are supported, from 200x200mm at the low end up through the large-format 800x600mm and 900x600mm patterns used on the biggest commercial panels.
Yes, an integrated cable management channel is built into this model, unlike the lighter fixed and tilt mounts in the VSYS range which use open-architecture rear access instead. This reflects the model’s positioning for larger, more permanent commercial installations where a clean, concealed cable run matters more.
Yes. Given the size and weight involved, professional installation is strongly recommended and available UAE-wide on request. Request it through the same quote form or WhatsApp used for pricing and availability on the VS02D-696, with installation available as an option alongside the mount itself.
