The VS01E-46F trades the heavier-duty VS01A-46F’s steel-only build for a steel-and-plastic hybrid construction, which is what gets its standoff profile down to 20mm, the lowest in the VSYS fixed-mount lineup, while still carrying a 45kg rating through the same 1.4mm-gauge bracket geometry. That isn’t a stripped-down version of the 80kg model, it’s a different design target, sized for displays where 45kg covers the actual panel weight with margin and a tighter-to-wall finish matters more than curved-panel support.
The tradeoff for that low profile is a narrower feature set: no direction indicator, no integrated cable channel, no bubble level in the box. VSYS builds this model to be economical to ship and install at volume within its weight class, backed by the same four-times strength-test standard as the rest of the fixed-mount range.
The VS01E-46F is specified where the display is confirmed under 45kg, a low standoff profile matters more than curved-panel support or integrated cable routing, and the project has enough panels in this weight class to make the lighter, more economical build a genuine specification advantage. Typical fit: standard commercial flat-panel displays in offices, retail, and hospitality where the panel itself, not the mount, is the constraint on the project.
Where the project needs curved-panel support, an integrated cable channel, or a rating above 45kg, the heavy-duty VS01A-46F is the correct specification instead, not a variant of this SKU.
Wall fixing is solid wall or double-stud at 406mm, 450mm, or 600mm spacing, the same stud-spacing coverage as the heavy-duty range. Because this model ships without an integrated bubble level, installers should plan to bring their own for the wall-plate leveling step. Given the panel sizes this model supports, professional installation is recommended and available UAE-wide on request.
| Product Category | Fixed TV Wall Mount |
| Build Class | Economy |
| Material | Steel, Plastic |
| Surface Finish | Powder Coating, Fine Texture Black |

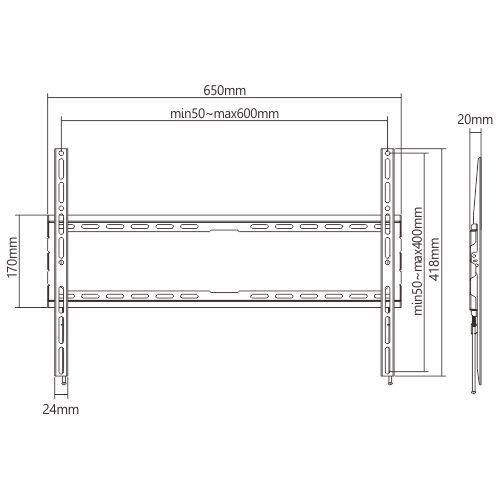

| Dimensions | 20 x 650 x 418mm (0.79″ x 25.6″ x 16.5″) |
| Fit Screen Size | 37″-86″ |
| Curved Panel Compatible | No |
| VESA Compatibility | 200×200, 300×200, 400×200, 300×300, 400×300, 400×400, 600×400 |
| Maximum Mounting Hole Spread | 600 x 400mm |
| Weight Capacity | 45kg (99lbs) |
| Strength Test Rating | 4x rated capacity |

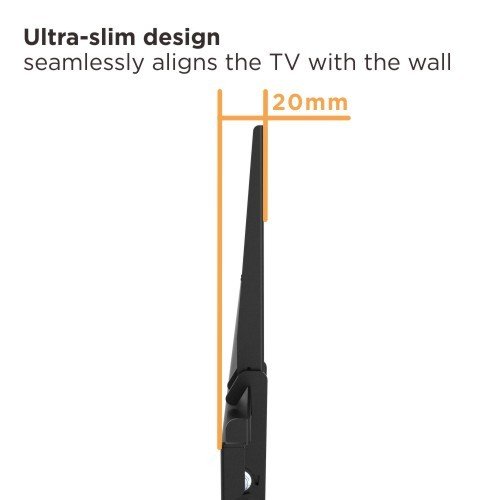

| Standoff Profile | 20mm (0.79″) from wall |
| Wall Compatibility | Solid wall or double-stud, 406mm / 450mm / 600mm spacing |
| Wall Plate Type | Fixed (non-articulating) |

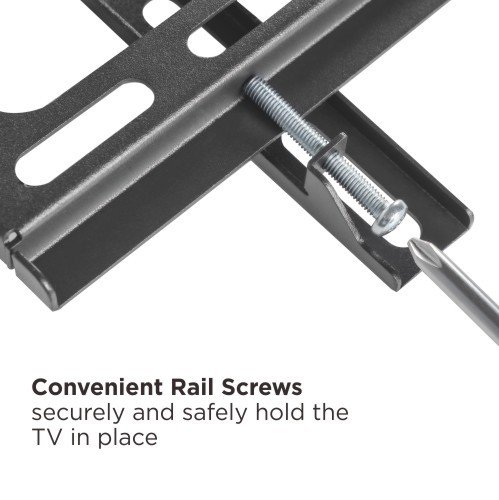

| Panel Attachment | Detachable panel bracket |
| Cable Management | No |
| Direction Indicator | No |
| Packaging | Compartment polybag |
45kg (99lbs). For anything heavier, or for curved panels, which aren’t supported on this economy-tier model, the VS01A-46F heavy-duty fixed mount is the correct specification instead, sharing the same 37″-86″ screen size range but built on a steel-only bracket rated to 80kg.
No. This economy-tier build ships without an integrated bubble level, which is one of the tradeoffs for the lighter, more economical construction. Bring a separate level for the wall-plate installation step, since accurate leveling before the panel bracket attaches still matters for a clean finish.
Anything below 200x200mm or above 600x400mm falls outside this model’s seven-pattern range. Confirm the target display’s exact VESA spec on its own datasheet before ordering, since this mount is built for the mid-range of the VESA spectrum, not the full range VSYS covers across its wall-mount lineup.
No. Curved-panel compatibility is available on the VS01A-46F heavy-duty range, not this economy-tier model. The steel-and-plastic hybrid bracket geometry here is engineered specifically for flat panels within the 45kg weight class, not the additional stress a curved panel’s mounting points introduce.
Both hold 37″-86″ displays, but the VS01A-46F is rated to 80kg with a steel-only build and 30mm profile, while the VS01E-46F is rated to 45kg with a steel-and-plastic hybrid build and a lower 20mm profile, a different design target rather than a stripped-down version of the same mount.
Yes, given the panel sizes this model supports, professional installation is recommended and available UAE-wide on request. Request it through the same quote form or WhatsApp used for pricing and availability on the VS01E-46F, with installation available as an option alongside the mount itself.
