| Product Category | Fixed TV Wall Mount |
| Rank | Standard |
| Material | Steel |
| Metal Sheet Thickness | Bracket Arm THK=1.8mm cold-rolled sheet, Wall Plate THK=1.8mm cold-rolled sheet (Bracket Arm THK=0.071" cold-rolled sheet, Wall Plate THK=0.071" cold-rolled sheet) |
| Surface Finish | Powder Coating |
| Color | Fine Texture Black |

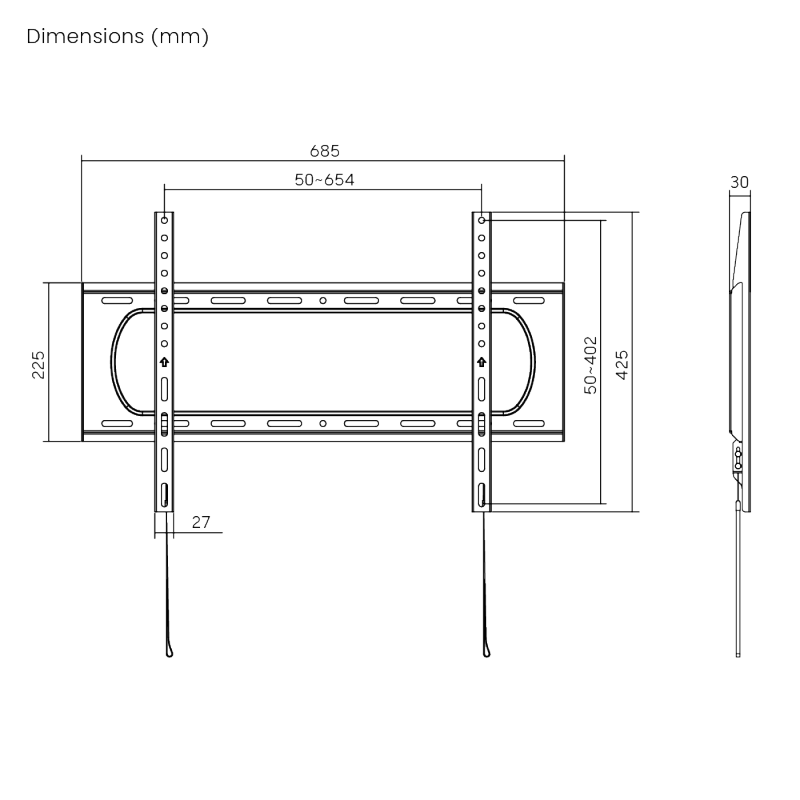

| Dimensions | 30x685x425mm (1.2"x27"x16.7") |
| Fit Screen Size | 37"-86" |
| Fit Curved TV | Yes |
| Mounting Hole Pattern | VESA & Universal |
| VESA Compatible | 50x50, 75x75, 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x300, 600x200, 400x400, 600x300, 600x400 |
| Max. Mounting Hole | 654x402mm |
| Weight Capacity | 80kg (176lbs) |
| Strength Tested | 4 Times Approved |
| Profile | 30mm (1.2") |
| Installation | Solid Wall, Double Stud (406mm/450mm/600mm) |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| AV Component Shelf | No |
| Direction Indicator | Yes |
| Cable Management | No |
| Anti-theft | No |
| Bubble Level | Hook-on Bubble Level (Included in Components Package) |
| Accessory Kit Package | Normal/Ziplock Polybag, Compartment Polybag |
| Silk Screen | Can be silkscreen printed |

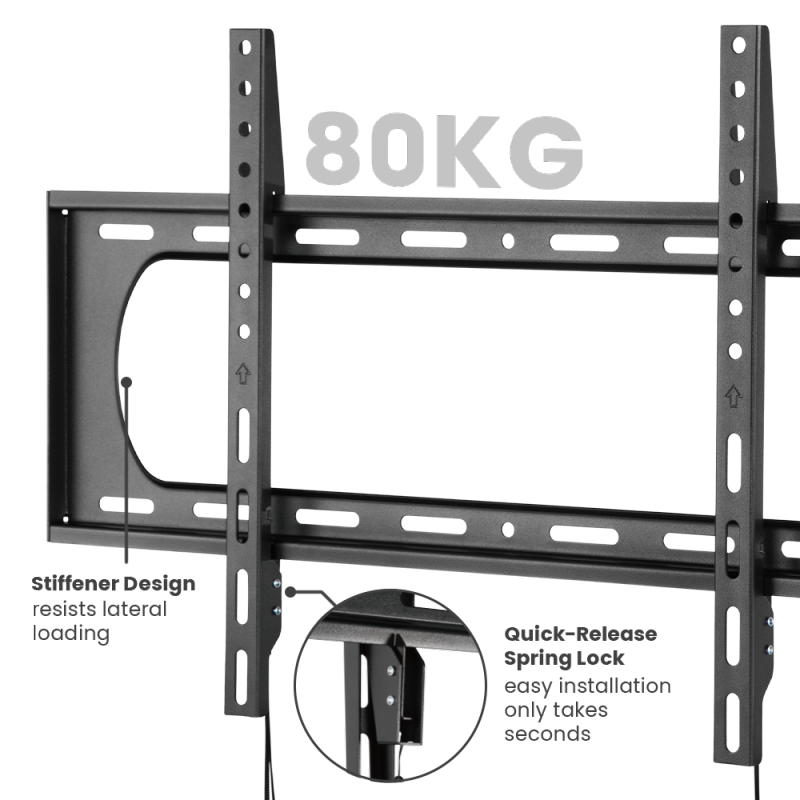

Engineered with a reinforced stiffener structure to support massive 80kg loads. It provides a rock-solid, non-moving foundation essential for interactive screens where pressure is constantly applied, all while maintaining a slim 30mm profile.
Heavy-Duty TV Wall Mount , TV Mount , TV Wall Mount , TV Bracket
Traditional mounts often lack the structural integrity required for heavy interactive screens and large commercial displays. The VS01A-46F solves this with a specialized stiffener architecture that ensures a safe and durable installation for high-traffic environments.
The VS01A-46F is engineered to hold 37–86" screens weighing up to 80 kg. Its heavy‑duty steel construction resists lateral forces and includes a quick‑release spring lock for safe installation in malls and airports.
GCC corporates need reliable mounts for digital signage. The VS01A-46F provides a central opening for power sockets and cable routing, keeping wiring concealed and the lobby polished.
Maintenance teams in CIS venues can remove the screen quickly using the spring lock without dismantling the entire assembly, reducing downtime.
African universities benefit from the mount’s high capacity and sturdy design, which secure large lecture‑hall displays. The open centre facilitates power connection and cable management.
For families with very large TVs, this mount solves safety concerns by anchoring the set securely to the wall while still providing access to rear ports through the central opening.
Tell us about your project and our team will recommend the right mounting solution for your display or video wall installation.
