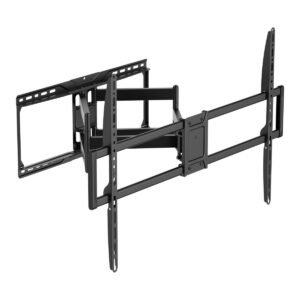

The VS02A-696 is a heavy-duty full-motion TV wall mount for 50″-100″ displays up to 75 kg. The arm extends to 644 mm from the wall, swivels 60 degrees each way, tilts +5/-15 degrees, and accepts VESA patterns up to 900×600 mm. In the VSYS full-motion range it sits between the 50 kg VS02US-464 and the 120 kg VS02D-696.
The structure is built around 40x20x1.2 mm square steel tube for the arm, with 1.5 mm steel in the bracket arm, 1.8 mm in the VESA panel, and 2.5 mm in the wall plate. Each component is sized to its own load path: the thickest steel sits at the wall plate, where the cantilevered load from a fully extended arm concentrates. The mount is strength-tested to three times its 75 kg rating.
At 50″-100″ and 75 kg, the VS02A-696 covers the large-format displays that dominate boardrooms, hotel suites, hospitality lounges, and retail digital signage, where a panel needs to angle toward a seating area or pull clear of a wall for rear access. Curved panels are supported.
Where a panel stays flat to the wall after installation, a fixed or tilt mount carries the same display with fewer moving parts. Where the display exceeds 75 kg or 100″, the 120 kg VS02D-696 is the next specification up.
The VS02A-696 mounts to a solid wall or to a dual-stud wall at 406 mm, 450 mm, or 600 mm spacing, using a fixed wall plate. The VESA panel is detachable. Given the size and weight of panels in this range, professional installation is recommended and available UAE-wide on request.
| Product Category | Full-Motion TV Wall Mount |
| Build Class | Standard |
| Material | Steel, plastic |
| Arm Construction | 40x20x1.2 mm square steel tube (1.6″ x 0.79″ x 0.047″) |
| Sheet Thickness | Bracket arm 1.5 mm, VESA panel 1.8 mm, wall plate 2.5 mm |
| Surface Finish | Powder coating, fine texture black |

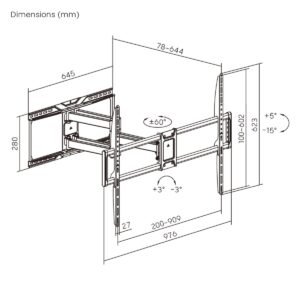

| Dimensions | 644 x 976 x 623 mm (25.4″ x 38.4″ x 24.5″) |
| Fit Screen Size | 50″-100″ |
| Curved Panel Compatible | Yes |
| Mounting Hole Pattern | VESA and universal |
| VESA Compatibility | 200×100, 200×200, 200×300, 300×200, 200×400, 400×200, 300×300, 300×400, 400×300, 600×200, 500×300, 400×400, 600×300, 500×400, 400×600, 600×400, 700×400, 800×400, 600×600, 800×500, 800×600, 900×600 |
| Maximum Mounting Hole Spread | 909 x 602 mm |
| Weight Capacity | 75 kg (165 lbs) |
| Strength Test Rating | 3x rated capacity |
| Extension Range | 78 mm to 644 mm (3.1″ to 25.4″) from wall |

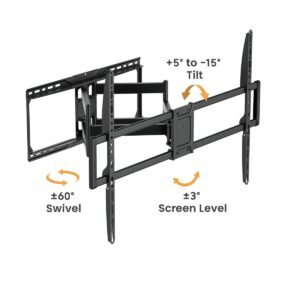

| Tilt Range | +5 degrees / -15 degrees |
| Swivel Range | +60 degrees / -60 degrees |
| Screen Leveling | +3 degrees / -3 degrees |
| Wall Compatibility | Solid wall or dual stud, 406 mm / 450 mm / 600 mm spacing |
| VESA Panel | Detachable |
| Wall Plate | Fixed |

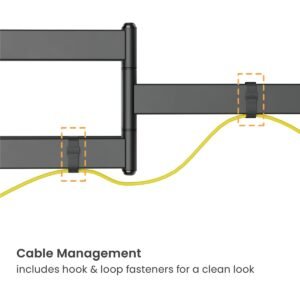

| Cable Management | Yes, hook and loop fasteners included |
| Alignment Aid | Hook-on bubble level, included in accessory kit |
| Direction Indicator | Yes |
| Anti-Theft | No |

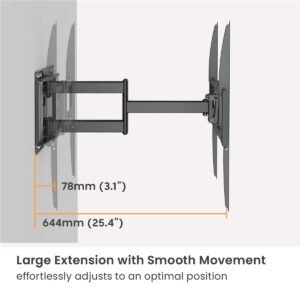

The arm runs from 78 mm off the wall when folded flat to 644 mm at full extension. That range lets a 50″-100″ display be pulled forward for rear access, or angled across a room, while the 60 degree swivel and +5/-15 degree tilt are used to fine-tune the final viewing position.
It supports 22 patterns on a universal hole panel, from 200×100 mm up to 900×600 mm, with a maximum hole spread of 909×602 mm. That covers the common large-format panel patterns, including 600×400, 800×400, 800×600, and 900×600, so check the pattern on the display’s rear label before ordering.
Yes. The mount is rated for curved panels within its 50″-100″ range and 75 kg limit. The detachable VESA panel makes this easier in practice, because the brackets are bolted to the display on a bench first, then the display is hung on the arm as a single step.
The VS02A-696 is rated to 75 kg and 50″-100″ displays, with 644 mm of reach. The VS02D-696 carries 120 kg and 60″-120″ displays with 703 mm of reach. Choose the VS02A-696 for mid-to-large panels, and step up to the VS02D-696 when the display exceeds 75 kg.
It mounts to a solid wall, or to a dual-stud wall at 406 mm, 450 mm, or 600 mm centres, through a fixed wall plate in 2.5 mm steel. Verify the wall’s own load rating before installation, because a fully extended arm places a cantilevered load on the fixings.
