The VS02SE-466 is a full-motion wall mount rated to 40kg for 37″-80″ flat or curved displays, extending VESA coverage up to 600x400mm to fit larger panels than the 400x400mm-capped VS02SE-446. It combines two-level height-adjustable brackets, independent +3/-3 degree screen leveling, and a 67mm to 355mm folding arm reach in a single economy-tier bracket.
The wider VESA range is the main engineering difference from its 32″-75″ sibling: the wall plate and VESA panel are stamped to the same 1.2-1.8mm gauge steel, but the panel geometry extends further to reach the 600x400mm hole pattern common on 65″-80″ commercial panels. Installation still uses the picture-hanging style, where the panel bracket hooks onto the wall plate before the height and leveling adjustments are fine-tuned.
The VS02SE-466 is specified where a 37″-80″ display needs full-motion flexibility at 40kg and the target VESA pattern exceeds the 400x400mm ceiling of the narrower VS02SE-446: larger living or media room displays, open-plan offices with bigger secondary screens, and lobby displays where the panel size pushes past what the smaller economy mount’s hole pattern can reach. The two-level height adjustment is useful where the final mounting height wasn’t confirmed before the wall plate went up.
Where the target display’s VESA pattern falls within 400x400mm, the VS02SE-446 covers the same weight class with a more compact wall plate footprint.
Mounts to a solid wall or two studs spaced 406mm apart using the included dual-stud wall plate. The panel bracket hooks onto the wall plate in a picture-hanging style for the initial hang, then the two-level height adjustment and independent screen-leveling mechanism fine-tune the final position. The included hook-on bubble level speeds up getting the wall plate straight before the panel goes up.
| Product Category | Full-Motion TV Wall Mount |
| Build Class | Economy |
| Material | Steel, Reinforced Plastic |
| Arm Construction | 30x20x1mm and 30x20x1.5mm Square Steel Tube |
| Metal Sheet Thickness | Bracket Arm: 1.2mm; VESA Panel: 1.5mm; Wall Plate: 1.8mm |
| Surface Finish | Powder Coating, Fine Texture Black |

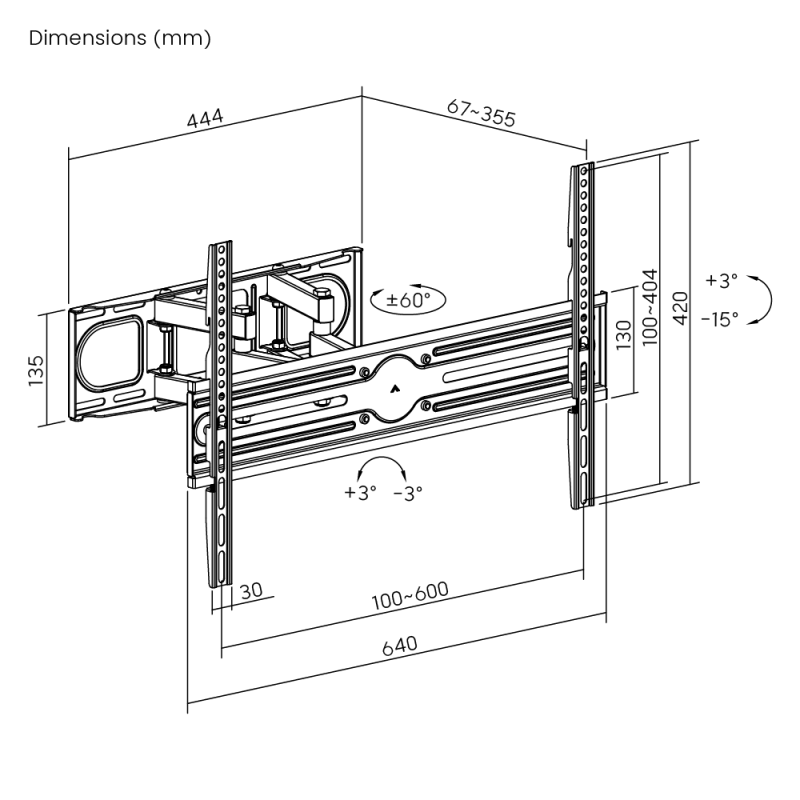

| Dimensions | 355 x 640 x 420mm (14″ x 25.2″ x 16.5″) |
| Fit Screen Size | 37″-80″ |
| Curved Panel Compatible | Yes |
| Mounting Hole Pattern | VESA and Universal |
| VESA Compatibility | 100×100, 100×150, 150×100, 100×200, 200×100, 150×150, 200×200, 300×200, 400×200, 300×300, 400×300, 600×200, 400×400, 600×300, 600×400 |
| Maximum Mounting Hole Spread | 600 x 400mm |
| Weight Capacity | 40kg (88lbs) |
| Strength Test Rating | 3x rated capacity |
| Extension Range | 67mm to 355mm (2.6″ to 14″) from wall |

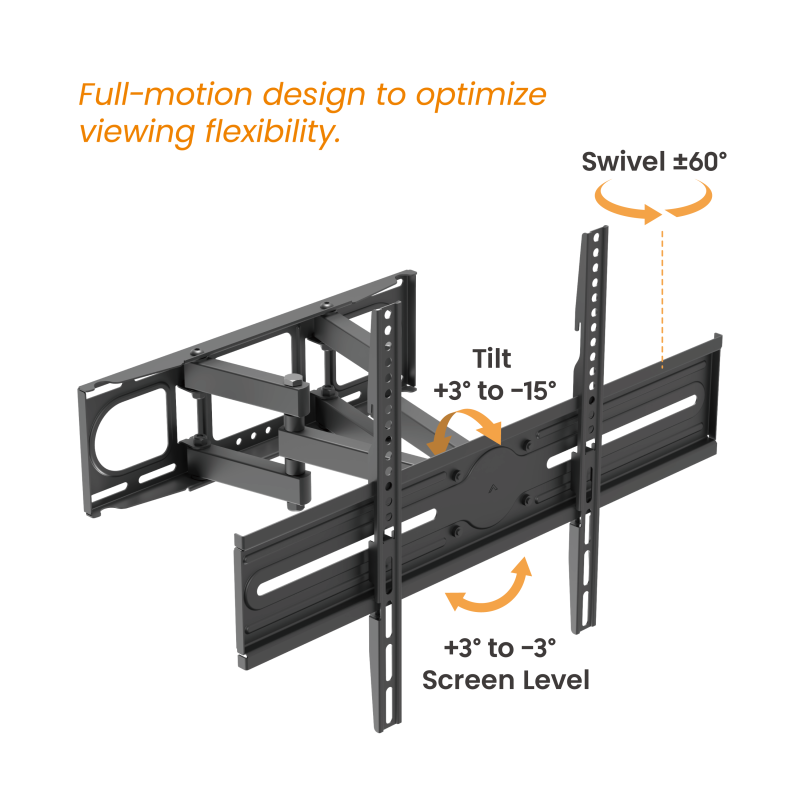

| Tilt Range | +3 degrees / -15 degrees |
| Swivel Range | +60 degrees / -60 degrees |
| Screen Leveling | +3 degrees / -3 degrees |
| Height Adjustment | 2-level bracket adjustment |
| Wall Compatibility | Solid wall or dual-stud, 406mm spacing |
| Panel Attachment | Detachable panel bracket, picture-hanging style |
| Direction Indicator | Yes |
| Cable Management | Yes, integrated |
| Alignment Aid | Hook-on bubble level, included |
Both are economy-tier full-motion mounts with identical tilt, swivel, and leveling ranges, but the VS02SE-466 targets a larger 37″-80″ display class with VESA coverage up to 600x400mm, versus the VS02SE-446’s 32″-75″ range and 400x400mm ceiling. Choose based on the target display’s actual VESA pattern, not just screen size.
Up to a 600x400mm maximum hole spread, the widest in the VSYS economy full-motion tier, covering 15 total mounting patterns from 100x100mm through 600x400mm. This is the model to specify when a target display’s VESA pattern exceeds the narrower VS02SE-446’s 400x400mm limit.
It lets the panel bracket’s vertical position shift between two settings after the wall plate is already installed, so the final mounting height can be fine-tuned without redrilling. This is useful when the exact preferred viewing height wasn’t confirmed before the wall plate went up.
From 67mm at rest up to 355mm fully extended, on a two-section folding arm with full ±60 degree swivel available at any extension point along that range, giving flexibility for corner installations or angled viewing positions.
Yes, this model requires dual-stud spacing at 406mm, or a solid wall, reflecting its 40kg weight class. The wider wall-plate fixing is what allows the higher weight rating in the first place, consistent with the VS02SE-446 in the same tier.
Professional installation is available UAE-wide on request, though the picture-hanging installation style and included bubble level make this a reasonably approachable model to install with the right hardware. Request installation through the same quote form or WhatsApp used for pricing.
