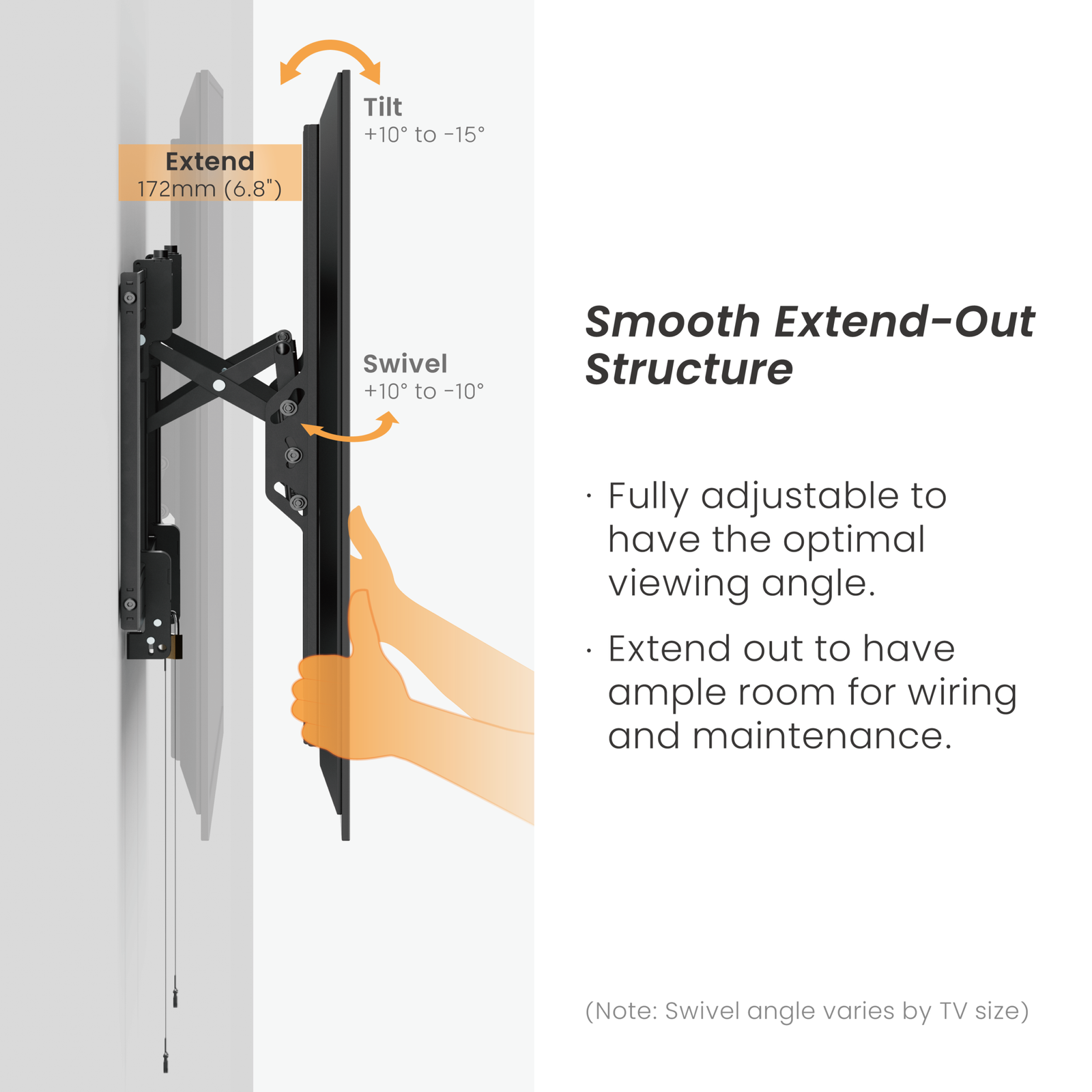

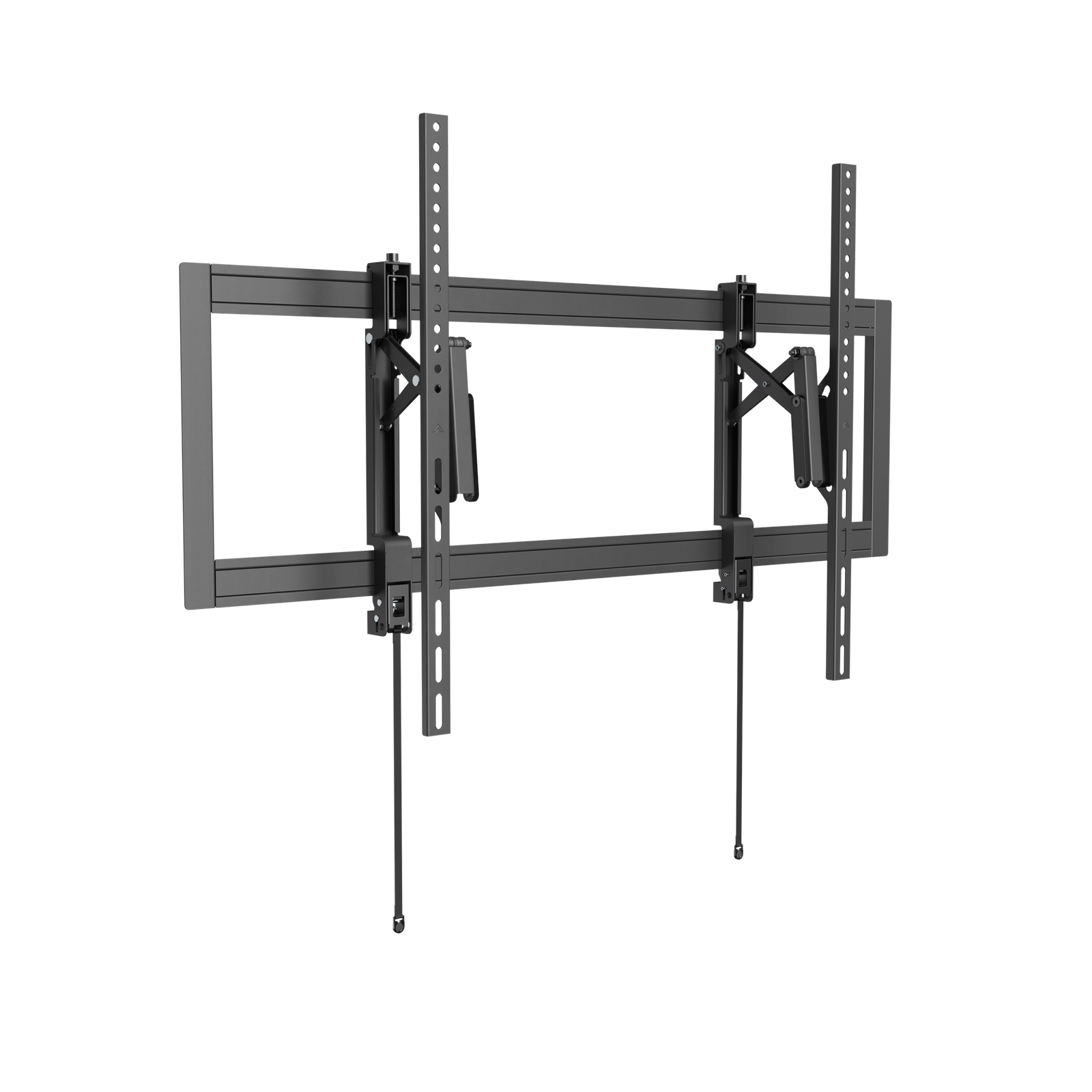

The VS03P-610T is a heavy-duty extend-out tilt wall mount for 55″-105″ displays rated to 80kg, built on a sliding dual-arm frame stamped from 2mm cold-rolled steel. The dual-arm geometry pulls the panel 53mm to 172mm off the wall on a straight-line path rather than an arc, holding full access to cabling and connections at any point across that range. Tilt runs +10° to -15° and swivel +10° to -10°, with the extended -15° tilt specifically engineered for above-fireplace and above-cabinet mounting heights, where the bracket sits above eye level and the panel needs to angle down toward seating rather than project straight out.
Rather than a fixed bolt pattern, the wall plate rides on a sliding rail, so the bracket arms get repositioned to match the actual on-site stud spacing before the plate goes up, instead of the stud layout dictating where the display ends up. A magnetic strap folds flush against the arm to keep cable slack out of sight when retracted, and an anti-theft locking hole paired with quick-release spring locks lets the panel come off the wall plate for bench service without unbolting the full frame. VESA coverage runs the full range up to 1000×600mm, curved-panel compatible.
The VS03P-610T is specified for large-format 55″-105″ display installations where the mounting position isn’t a straightforward eye-level wall, above a fireplace, above a media cabinet, or on a wall where stud spacing doesn’t line up with a fixed bracket pattern. The -15° tilt extreme and sliding lateral positioning solve both problems in one mount rather than requiring a specialty above-fireplace bracket for one job and a stud-finder-dependent fixed mount for the other.
For large-format displays going on a straightforward eye-level wall with known stud spacing, a simpler fixed or standard tilt mount is typically more cost-effective, this model earns its place in the lineup specifically for the awkward-placement and stud-flexibility cases.
Rated for solid wall installation given the 80kg load and extension range involved. The sliding rail on the wall plate should be used to align the bracket arms with the actual stud locations before final tightening, this is the mount’s primary advantage over a fixed-hole-pattern bracket and is worth taking the time to get right. Tilt and swivel are adjusted after hanging to dial in the final viewing angle, particularly relevant for above-fireplace placements. Given the load rating and adjustment range, professional installation is strongly recommended and available UAE-wide on request.
| Product Category | Wall Mount |
| Build Class | Heavy-Duty |
| Material | Steel and Plastic |
| Metal Sheet Thickness | 2mm cold-rolled steel |

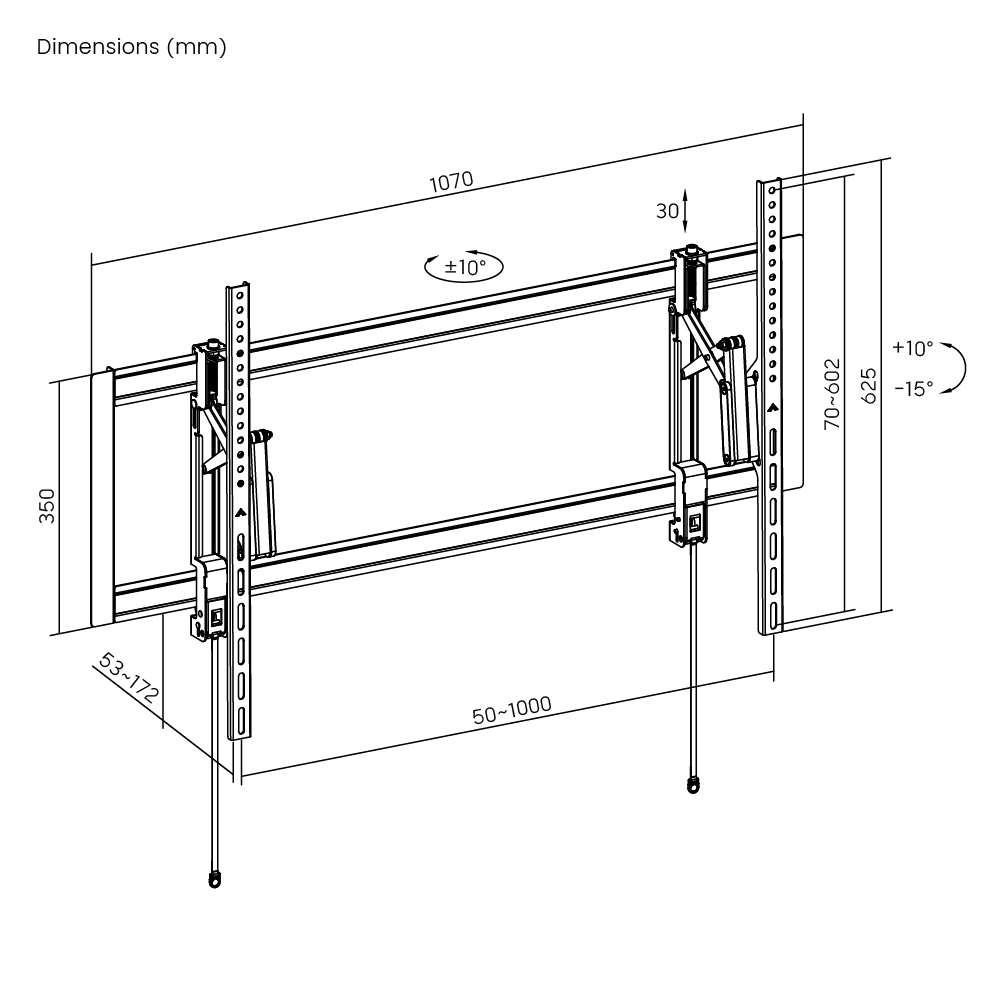

| Overall Dimensions | 172 x 1070 x 625mm (6.8″ x 42.1″ x 24.6″) |
| Fit Screen Size | 55″-105″ |
| Mounting Hole Pattern | VESA |
| VESA Compatibility | 200×200, 300×200, 400×200, 300×300, 400×300, 400×400, 600×400, 800×400, 600×600, 800×600, 900×600, 1000×600 |
| Maximum Mounting Hole Spread | 1000 x 602mm |
| Weight Capacity | 80kg (176lbs) |
| Screen Quantity | 1 |
| Extension Range | 53mm to 172mm (2.1″ to 6.8″) from wall |
| Tilt Range | +10 degrees / -15 degrees |
| Swivel Range | +10 degrees / -10 degrees |
| Curved TV Support | Yes |
| Installation | Solid wall only |
| Lateral Adjustment | Yes, sliding wall plate rail |
| Anti-Theft | Yes, locking hole with quick-release spring locks (padlock not included) |
| Cable Management | Magnetic self-concealing strap |
The extreme -15° setting is specifically for above-fireplace or above-cabinet installations, where the display sits well above eye level and needs a steeper downward angle to be viewable from a normal seating position. Most standard tilt mounts don’t need this range because they’re designed for eye-level walls.
The wall plate has a rail that lets the bracket arms slide left or right before final tightening, so the mount can be centered on the display’s VESA pattern regardless of where the wall studs actually fall. This removes the common conflict between “where the studs are” and “where the TV needs to be” on fixed-hole-pattern mounts.
It’s a cable management strap that self-conceals against the mount arm when not holding a cable run, keeping the installation tidy without a separate cable cover accessory. It’s most useful when the display is in its extended position for service access.
Yes, the mount is explicitly rated for curved-panel compatibility in addition to flat displays, relevant for large-format curved commercial and high-end residential screens in the 55-105 inch range, with no separate curved-panel SKU or adapter required.
It accepts a separate padlock, not included, to secure the extend-out mechanism against unauthorized use, paired with quick-release spring locks that still keep routine installation and removal straightforward for authorized technicians on public-facing or commercial installations.
Yes. Given the 80kg load rating and the extend-out mechanism’s reliance on correct stud engagement, professional installation is strongly recommended and available UAE-wide on request through the same quote form or WhatsApp used for pricing and availability.
