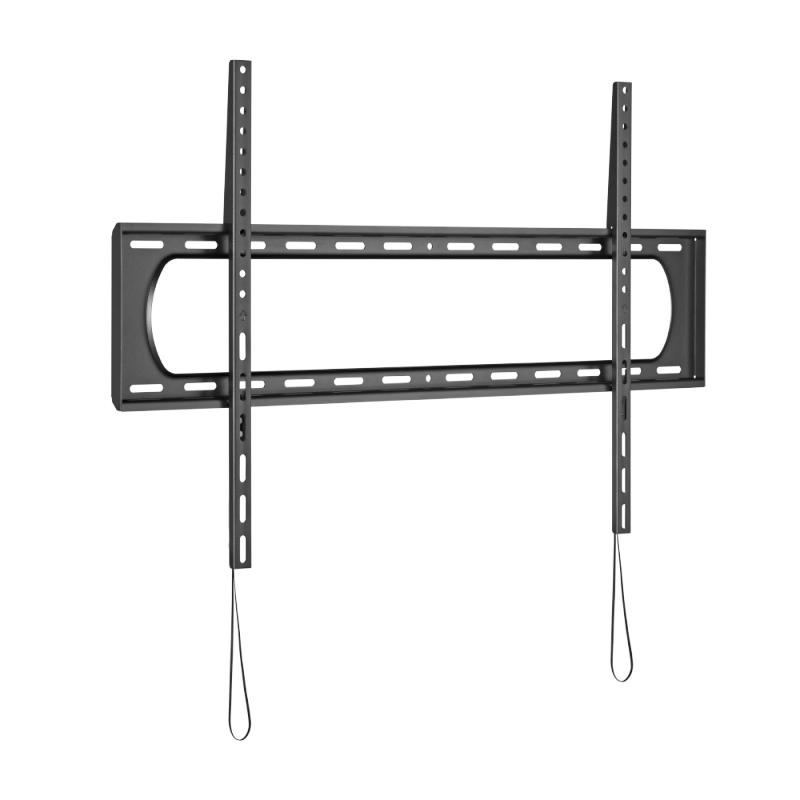

The VS01A-69F scales the fixed-mount engineering of the VS01A-46F up to 120kg and a 60″-120″ display range, using 2mm cold-rolled steel instead of 1.8mm across both the bracket arm and wall plate to carry the additional load without adding articulation. At a 35mm standoff and a 974x602mm maximum VESA hole spread, it’s built for large-format panels where the mounting hardware itself has to handle a genuinely different weight class, not just a wider bracket stamped from the same stock.

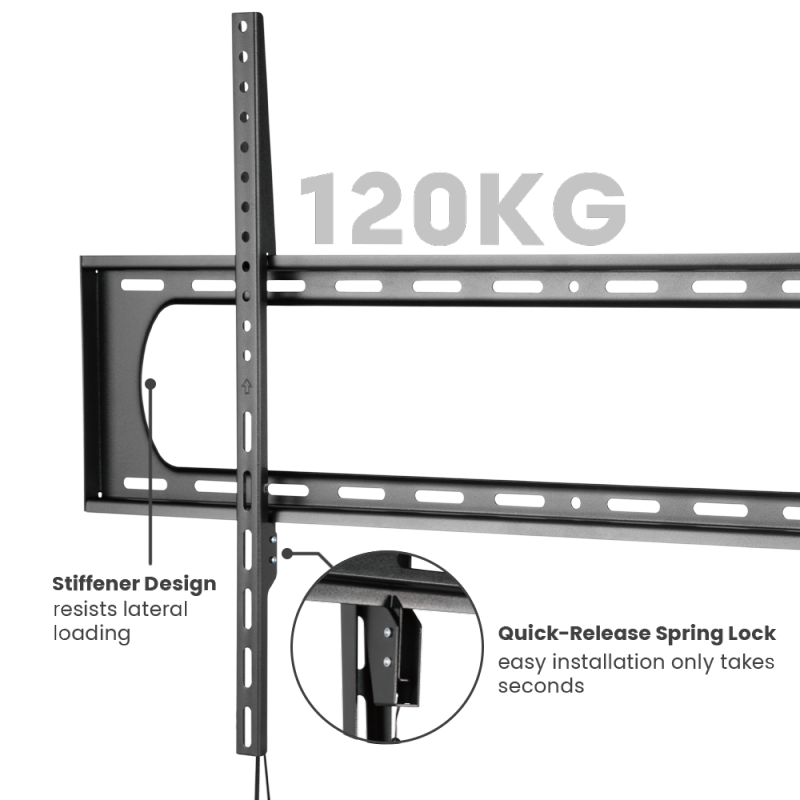

The extra material also earns UL certification alongside the standard four-times strength test, a distinction the lighter fixed mounts in the VSYS range don’t carry. That’s the same design logic across the whole fixed-mount lineup: match the steel gauge and stiffener structure to the actual load class, rather than building one bracket and derating it down for smaller panels.
The 60″-120″ range and 120kg rating put the VS01A-69F in auditorium, large-format signage, and boardroom-display territory: installations where the panel size itself demands a mount engineered for that specific load class, not a general-purpose bracket pushed to its upper limit. The fixed, non-articulating design suits permanent installs where the viewing angle is set by the room layout and won’t change after commissioning.
Where a project needs post-install angle adjustment or pull-forward access at this size and weight class, the VSYS full-motion range should be specified instead, this fixed mount is built for permanence, not flexibility.

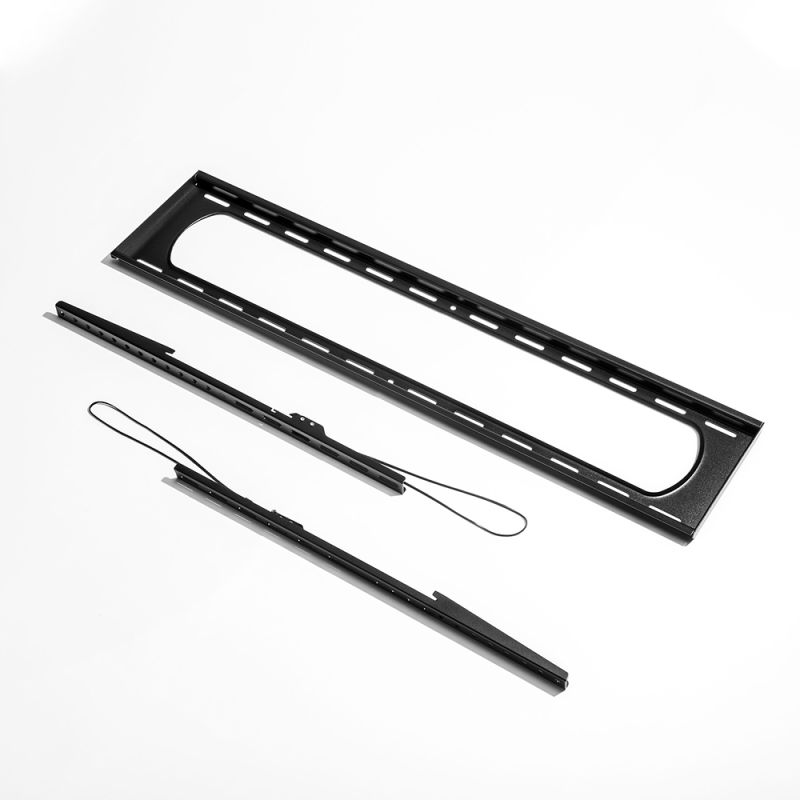

The wall plate mounts to a solid wall or double-stud assembly at 406mm, 450mm, or 600mm spacing, with the wide plate spreading the 120kg load across the stud pair for a secure hold. Direction indicators mark correct orientation, and the included hook-on bubble level is used during the wall-plate step, before the panel bracket is attached. Given the size and weight involved, professional installation is strongly recommended and available UAE-wide on request.
| Product Category | Fixed TV Wall Mount |
| Build Class | Standard |
| Material | Cold-Rolled Steel |
| Metal Sheet Thickness | Bracket Arm: 2mm (0.079″); Wall Plate: 2mm (0.079″) |
| Surface Finish | Powder Coating, Fine Texture Black |

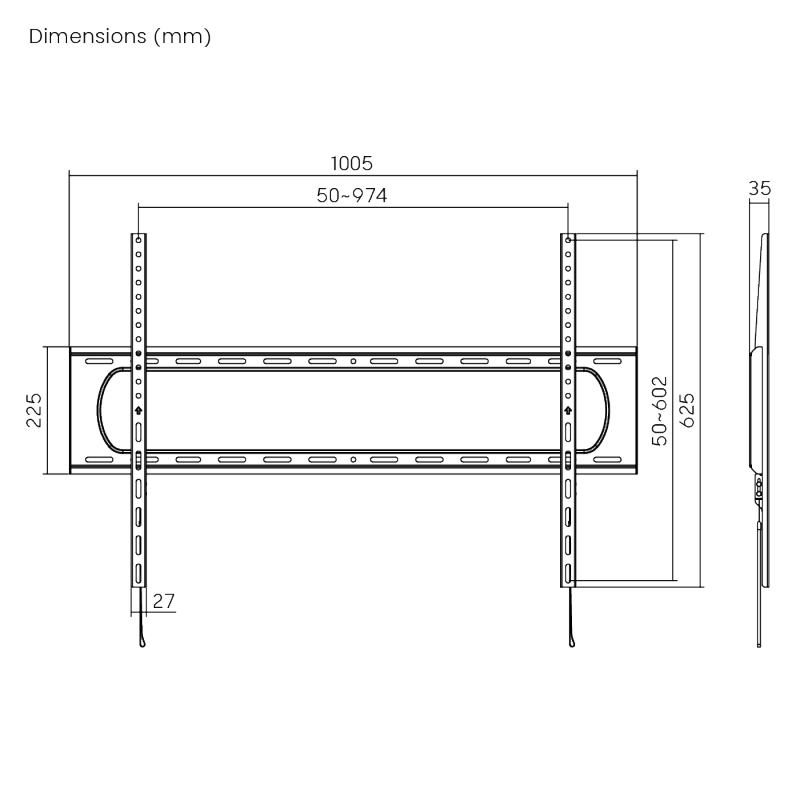

| Dimensions | 35 x 1005 x 625mm (1.4″ x 39.6″ x 24.6″) |
| Fit Screen Size | 60″-120″ |
| Curved Panel Compatible | Yes |
| Mounting Hole Pattern | VESA and Universal |
| VESA Compatibility | 50×50 up to 900×600, 28 total patterns |
| Maximum Mounting Hole Spread | 974 x 602mm |
| Weight Capacity | 120kg (264lbs) |
| Strength Test Rating | 4x rated capacity |
| Standoff Profile | 35mm (1.4″) from wall |
| Wall Compatibility | Solid wall or double-stud, 406mm / 450mm / 600mm spacing |
| Wall Plate Type | Fixed (non-articulating) |
| Panel Attachment | Detachable panel bracket |
| Alignment Aid | Hook-on bubble level, included |
| Certification | UL |
| Cable Management | No |

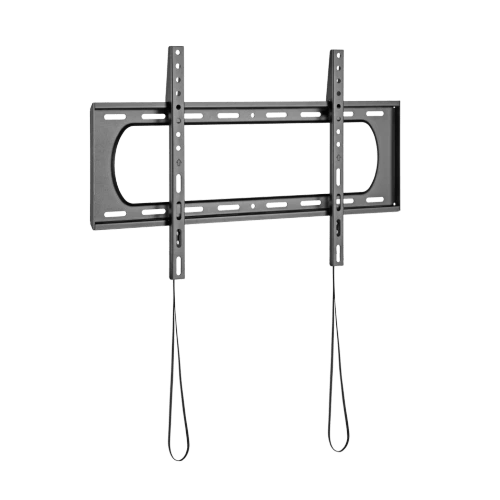

Both are fixed-position mounts with the same 4x strength-test standard, but the VS01A-69F is built for a larger 60″-120″ display class at 120kg using 2mm steel, versus the VS01A-46F’s 37″-86″ range at 80kg using 1.8mm steel. It’s a scaled-up design for a genuinely heavier load class, not the same bracket rated higher.
UL certification, in addition to the standard four-times strength test applied across the VSYS fixed-mount range. This is specified on the large-format models where the load class and installation stakes are higher than on the smaller fixed mounts.
Up to a 974x602mm maximum hole spread, covering 28 total VESA patterns from 50x50mm through 900x600mm. This is the widest range in the VSYS fixed-mount lineup, sized for the large commercial panels this model targets.
Yes. The bracket geometry is rated for curved panels within the same 60″-120″ screen size and 120kg weight limits as flat panels, with no separate curved-panel SKU required. The same detachable panel bracket and VESA hole pattern coverage applies regardless of panel curvature.
Solid wall installation or double-stud mounting at 406mm, 450mm, or 600mm spacing. The wide wall plate spreads the 120kg load across the stud pair, which matters more at this weight class than on the lighter fixed mounts.
Yes. Given the size and weight involved, professional installation is strongly recommended and available UAE-wide on request. Request it through the same quote form or WhatsApp used for pricing and availability on the VS01A-69F.
