| Product Category | Tilt TV Wall Mount |
| Rank | Standard |
| Material | Steel |
| Metal Sheet Thickness | Bracket Arm THK=2mm cold-rolled sheet, Wall Plate THK=2mm cold-rolled sheet |
| Surface Finish | Powder Coating |
| Color | Fine Texture Black |

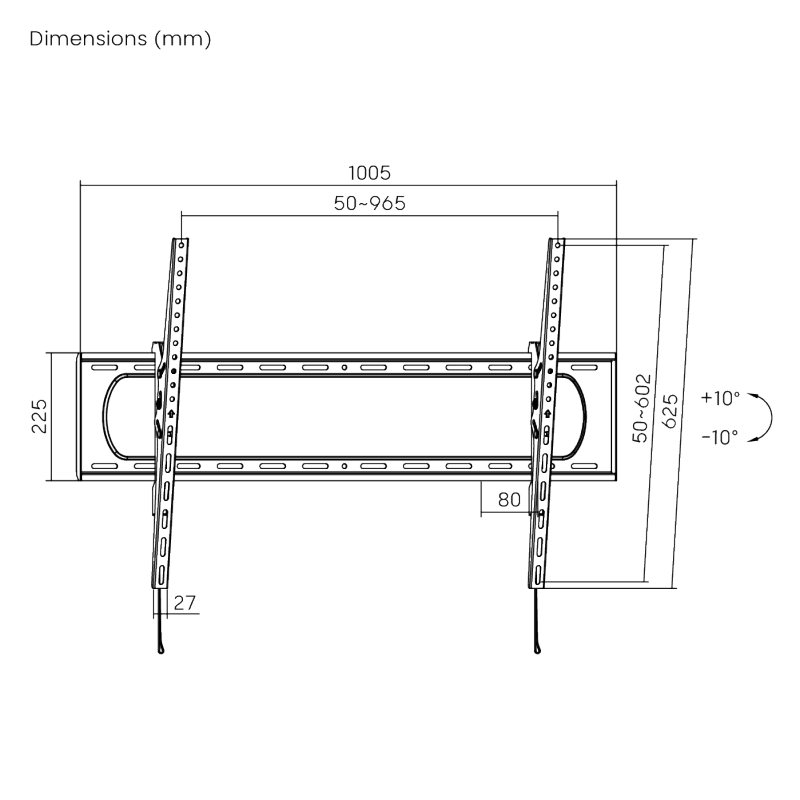

| Dimensions | 80x1005x602mm (3.1"x39.6"x23.7") |
| Fit Screen Size | 60"-120" |
| Fit Curved TV | Yes |
| Mounting Hole Pattern | VESA & Universal |
| VESA Compatible | 50x50, 75x75, 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x300, 600x200, 400x400, 600x300, 400x600, 600x400, 700x400, 800x400, 600x600, 800x500, 800x600, 900x600 |
| Max. Mounting Hole | 965x602mm |
| Weight Capacity | 120kg (264lbs) |
| Strength Tested | 4 Times Approved |
| Profile | 80mm (3.1") |

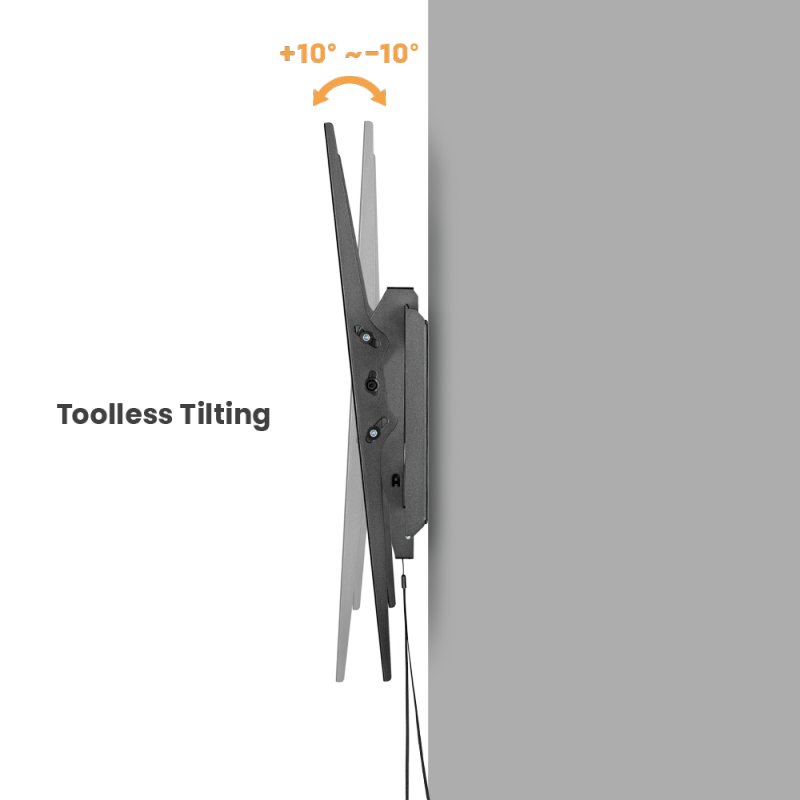

| Tilt Range | +10°~-10° |
| Screen Freely Tilting | Yes |
| Installation | Solid Wall, Double Stud (406mm/450mm/600mm) |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| AV Component Shelf | No |
| Direction Indicator | Yes |
| Cable Management | No |
| Anti-theft | No |
| Bubble Level | Hook-on Bubble Level (Included) |
| Accessory Kit Package | Normal/Ziplock Polybag, Compartment Polybag |
| Certification | UL |
| Silk Screen | Can be silkscreen printed |
Precision Viewing and Structural Power for Large-Format Displays. Mounting a 100-inch or 120-inch display at a fixed height often leads to significant viewing challenges, particularly in bright boardrooms or high-traffic retail environments where overhead lighting causes distracting screen glare. For interactive flat panels (IFPs), finding a mount that offers both a comfortable touch-angle and the structural integrity to withstand constant physical pressure is even more difficult. Most standard tilting mounts cannot handle the extreme weight and leverage of these massive panels, leading to hardware fatigue or unsafe installations. The VSYS VS01A-69T is engineered to provide absolute stability with the added flexibility of a professional tilting mechanism. Rated for a max 120kg and compatible with screens upto 120″, this mount features a reinforced steel construction that ensures your high-value display remains secure even under the physical demands of touch interaction. The tool-less tilting system allows for effortless adjustments, helping you find the perfect viewing angle and eliminate reflections in seconds. Its wide-format wall plate and multi-point VESA compatibility (upto 900×600) make it a versatile choice for everything from premium home theaters to nationwide digital signage networks.
Heavy-Duty TV Wall Mount , TV Mount , TV Wall Mount , TV Bracket , Tilting TV Wall Mount
Standard tilting mounts are rarely equipped to support the weight of oversized interactive screens, often resulting in “tilt drift” or structural sagging. The VS01A-69T solves this by combining an industrial-strength max 120kg capacity with a high-torque tilting system that stays exactly where you lock it. It provides the heavy-duty security required for displays upto 120″ while offering the ergonomic flexibility to optimize visibility in any lighting condition, making it the premier choice for professional AV installations across the UAE and the wider GCC.

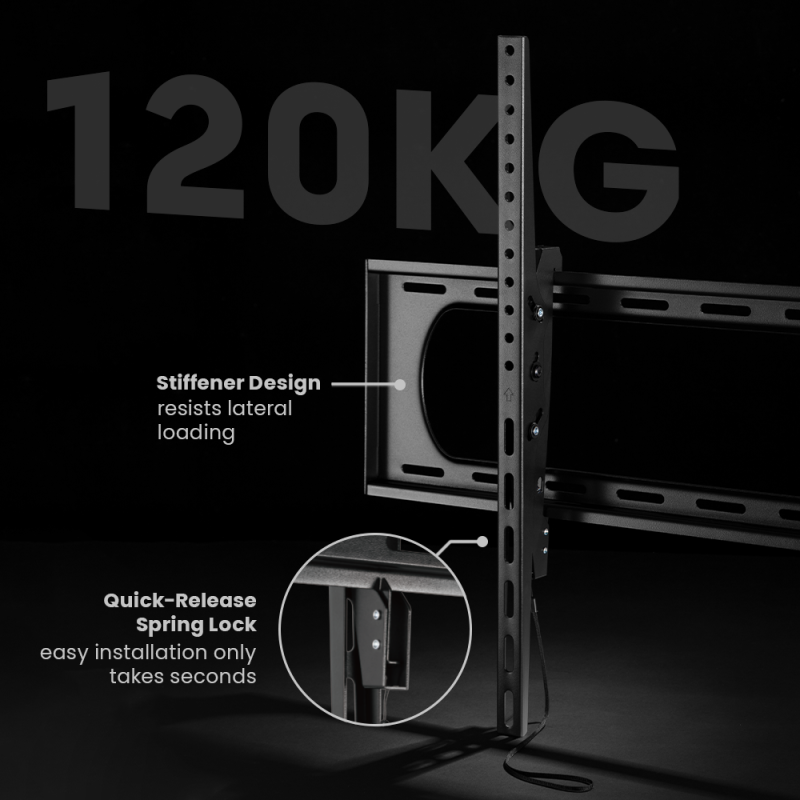

The VS01A-69T holds 60–120" screens weighing up to 120 kg. Its heavy‑duty design resists lateral loading and includes a quick‑release spring lock for safe installation. The tool‑less tilt range of +10° to –10° helps reduce glare in brightly lit control rooms.
In GCC hotels and restaurants, the VS01A-69T allows staff to angle large TVs toward guests using its +10° to –10° tilt range. A central opening accommodates power and AV sockets, hiding cables for a tidy presentation.
Yes. The quick‑release spring lock lets technicians remove heavy screens for service without tools, speeding up maintenance and minimizing downtime.
African conference halls often use large displays; this mount’s heavy‑duty capacity and simple tilt adjustment make it easy to optimize viewing angles for diverse audiences. Hidden cable channels keep installations neat.
For homeowners with oversized TVs, the mount solves the issue of securing a heavy set safely while allowing tilt adjustments to reduce reflections and improve comfort.
Tell us about your project and our team will recommend the right mounting solution for your display or video wall installation.
