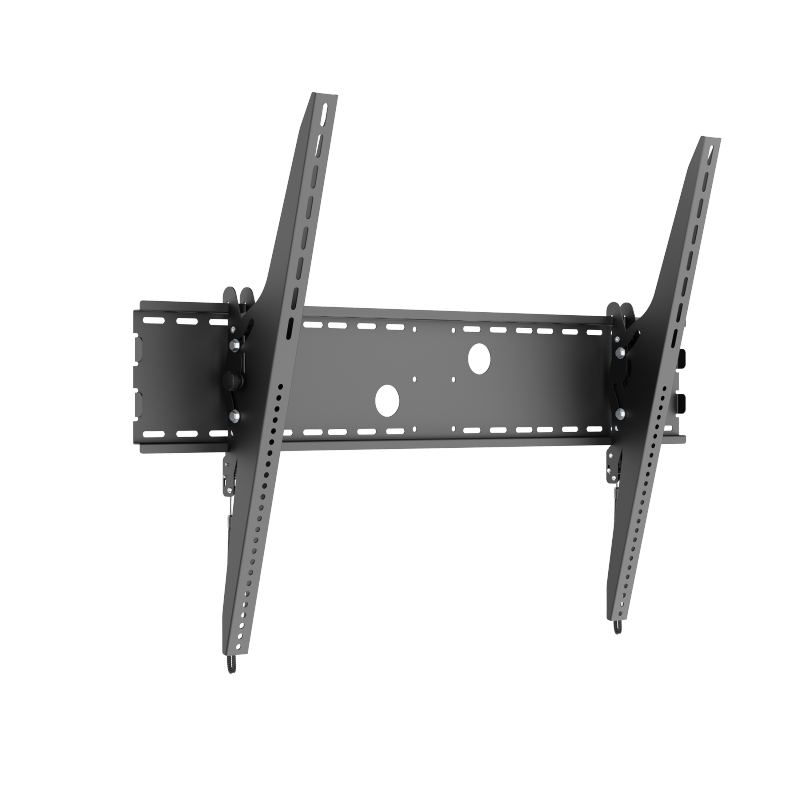

The VS01XL-810T carries a wider tilt window than the rest of the VSYS tilt range, +15/-15 degrees against the standard +10/-10, which is what drives its 120mm standoff profile, the deepest in the lineup. That extra depth gives the tilt mechanism the clearance it needs to swing through a larger arc without the panel’s lower edge contacting the wall plate at full downward tilt, a real geometric constraint on any tilt bracket, not just a design choice.
A second mechanism sets this model apart from the rest of the range: lateral shift brackets that let an installer slide the mounted panel left or right after it’s already hung, to correct centering on the wall without redrilling the wall plate. Built from 2mm steel and UL-certified with the standard four-times strength test, it’s engineered for the 60″-100″ curved and flat panel class at up to 100kg.
Specify the VS01XL-810T where a large-format display needs both a wider tilt correction than a standard tilt mount provides and precise post-install lateral centering, high-mounted signage, auditorium screens, and large-boardroom displays where the exact wall position matters and the install won’t get a second attempt at the wall plate. The extended tilt range also suits rooms with variable seating height where a single fixed downward angle wouldn’t serve every viewing position.

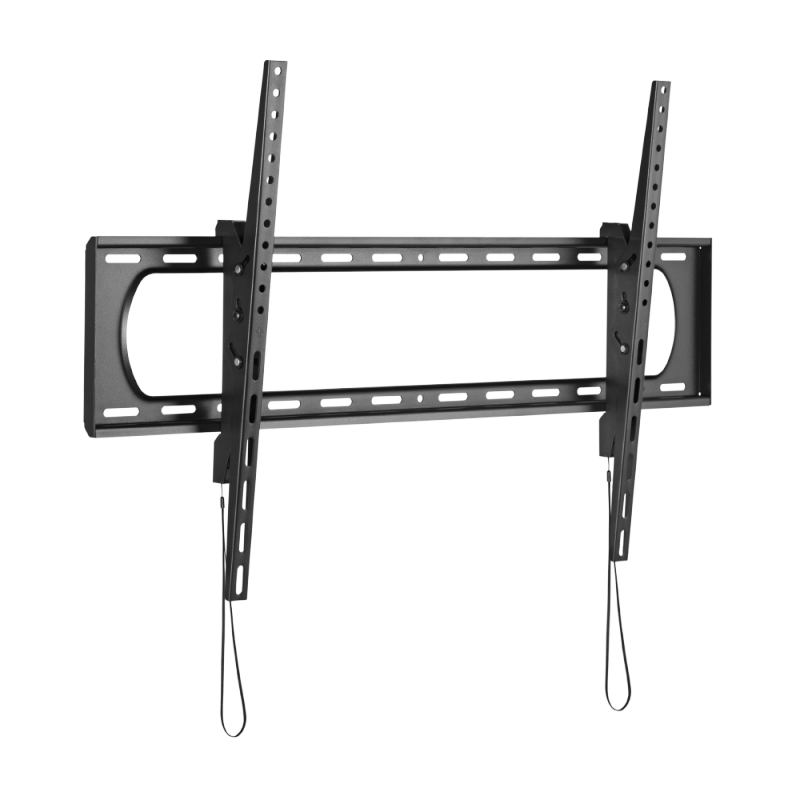

Where the standard +10/-10 tilt range is sufficient and lateral centering isn’t a project requirement, the VS01A-69T covers the same 100kg-plus weight class at a lower standoff profile.
The wall plate mounts to a solid wall or double-stud assembly at 406mm, 450mm, or 600mm spacing. This model ships without an integrated bubble level, so bring a separate one for the wall-plate leveling step. Once the panel is hung, the lateral shift brackets allow side-to-side repositioning without removing the panel or redrilling. Given the size and weight involved, professional installation is strongly recommended and available UAE-wide on request.
| Product Category | Tilt TV Wall Mount |
| Build Class | Standard |
| Material | Steel |
| Metal Sheet Thickness | 2mm (0.079″) |
| Surface Finish | Powder Coating, Fine Texture Black |

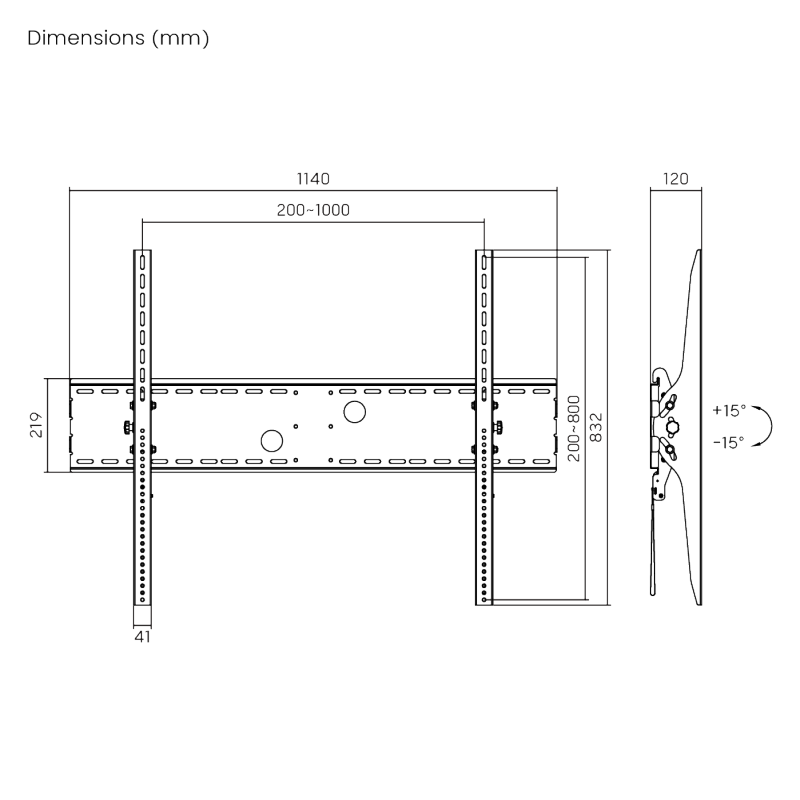

| Dimensions | 1140 x 832 x 120mm (44.9″ x 32.8″ x 4.7″) |
| Fit Screen Size | 60″-100″ |
| Curved Panel Compatible | Yes |
| Mounting Hole Pattern | VESA and Universal |
| VESA Compatibility | 200×200, 400×200, 300×300, 400×400, 600×400, 800×400, 600×600, 1000×400, 800×600, 1000×600, 800×800, 1000×800 |
| Maximum Mounting Hole Spread | 1000 x 800mm |
| Weight Capacity | 100kg (220lbs) |
| Strength Test Rating | 4x rated capacity |
| Standoff Profile | 120mm (4.7″) from wall |

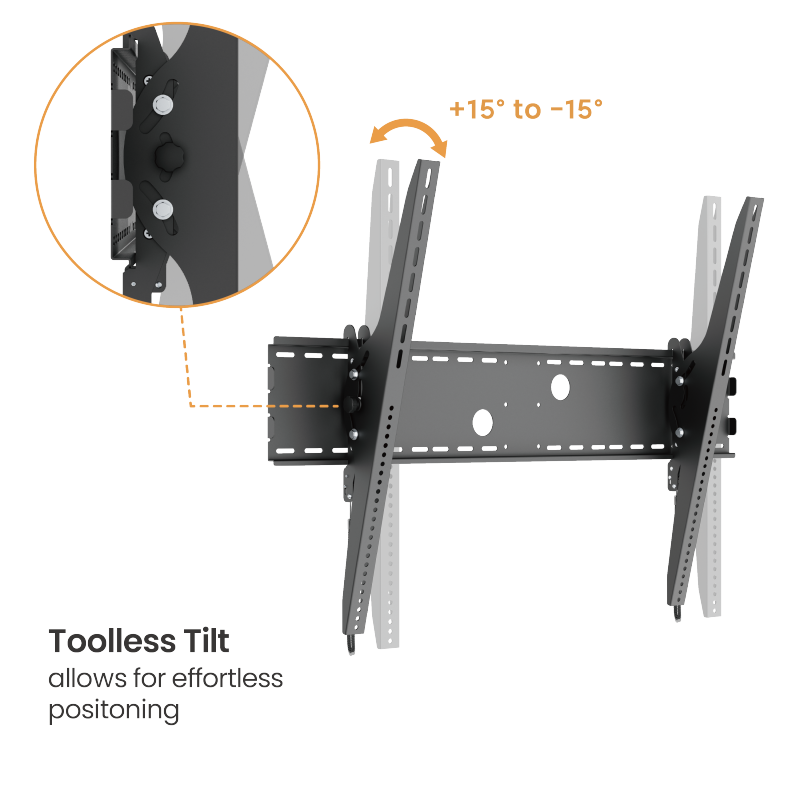

| Tilt Range | +15 degrees / -15 degrees, toolless |
| Lateral Adjustment | Yes, lateral shift brackets |
| Wall Compatibility | Solid wall or double-stud, 406mm / 450mm / 600mm spacing |
| Wall Plate Type | Fixed base, tilting head assembly |
| Panel Attachment | Detachable panel bracket |
| Cable Management | No |
| Certification | UL |
They let an installer slide the mounted panel left or right after it’s already hung, correcting the display’s centering on the wall without removing the panel or redrilling the wall plate. This matters most on large-format installs where a small measurement error becomes visually obvious at 60″-100″ scale.
The wider arc is enabled by this model’s deeper 120mm standoff profile, which gives the tilt mechanism the clearance to swing further without the panel’s lower edge contacting the wall plate. Standard VSYS tilt mounts use a shallower profile and a correspondingly narrower tilt range.
No. This model ships without an integrated bubble level; bring a separate level for the wall-plate installation step, before the panel bracket and lateral shift mechanism are attached. This is consistent with the rest of the standard-tier tilt range, which omits an included level in favor of keeping the accessory kit lean.
UL certification, alongside the standard four-times strength test applied across the VSYS fixed and tilt range, validated at this large-format 100kg weight class. Certification and testing standards stay consistent across the VSYS lineup regardless of a specific model’s size or tilt configuration.
Yes. The bracket geometry is rated for curved panels within the same 60″-100″ screen size and 100kg weight limits as flat panels, with the tilt and lateral shift mechanisms functioning identically on either panel type.
Yes. Given the size, weight, and the lateral shift and tilt mechanisms involved, professional installation is strongly recommended and available UAE-wide on request through the same quote form or WhatsApp.
