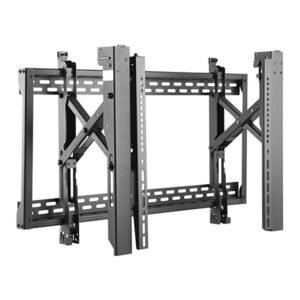

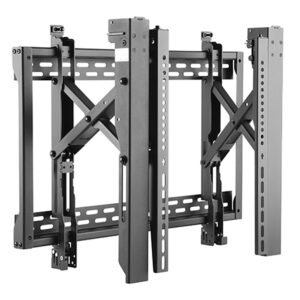

The VSVW13-48T is a pop-out landscape video wall mount for 45″-80″ displays carrying up to 70 kg per screen, with VESA patterns up to 800×400 mm. A quick-release latch locks the display in place and lets it pop out from the wall, from a 95 mm profile to 285 mm, so a single panel in a video wall can be reached for service without dismantling its neighbours.
Alignment is handled by fine adjustment of 20 mm in depth and 25 mm in height, with +4/-2 degrees of tilt and +3/-3 degrees of screen leveling, so panel faces can be matched edge to edge in a tiled array. The wall plate and bracket arm are 2 mm cold-rolled steel, and the mount is strength-tested to four times its rated load.
The 45″-80″ range and 70 kg per-screen rating suit video walls in control rooms, retail signage, transport hubs, and corporate lobbies, where each panel must be serviceable from the front without removing the displays around it. The landscape-orientation layout makes it the wider-panel option in the VSYS video wall range.
Where a project uses smaller 45″-70″ panels, the VSVW13-46T is the matching specification, and for displays up to 110″ and 130 kg, the VSVW13-610T carries the larger load.
The VSVW13-48T mounts to a solid wall. Verify the substrate’s load rating for 70 kg per screen before installation, and mount each bracket set to the same reference line so panels tile evenly. The 20 mm and 25 mm fine adjustments are used after the first fit to remove any seam offset between neighbouring displays.
| Product Category | Video Wall Mount |
| Build Class | Premium |
| Material | Steel |
| Sheet Thickness | Wall plate 2 mm, bracket arm 2 mm, cold-rolled steel |
| Surface Finish | Powder coating, fine texture black (accessories also fine texture black) |

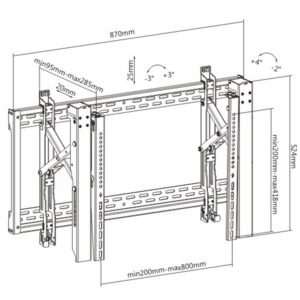

| Dimensions | 870 x 95-285 x 524 mm (34.3″ x 3.7″-11.2″ x 20.6″) |
| Fit Screen Size | 45″-80″ |
| VESA Compatibility | 200×200, 300×200, 400×200, 300×300, 400×300, 400×400, 600×400, 800×400 |
| Maximum Mounting Hole | 800 x 400 mm |
| Weight Capacity | 70 kg (154 lbs) per screen |
| Screen Quantity | 1 per bracket set |
| Strength Test Rating | 4x rated capacity |
| Profile | 95 mm to 285 mm (3.7″ to 11.2″) from wall |
| Fine Adjustment | Depth 20 mm, height 25 mm (0.79″ / 0.98″) |
| Tilt Range | +4 degrees / -2 degrees |
| Screen Leveling | +3 degrees / -3 degrees |
| Installation | Solid wall |
| Direction Indicator | Yes |
| Anti-Theft | Yes, locking hole (padlock required, not included) |
| Accessory Kit | Normal or ziplock polybag, compartment polybag |

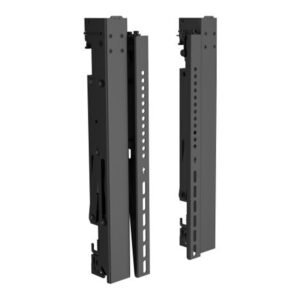

The mount runs from a 95 mm profile at rest to 285 mm when popped out. That gap gives service access behind a single panel in a video wall, while the quick-release latch holds the display securely in place whenever the mount is closed or open for maintenance.
It offers 20 mm of depth and 25 mm of height fine adjustment, +4/-2 degrees of tilt, and +3/-3 degrees of screen leveling. Together these let an installer match panel faces and remove seam offset between neighbouring displays after the first fit, without remounting the bracket.
It supports eight VESA patterns, from 200×200 mm up to 800×400 mm, which is the maximum mounting hole. That covers common landscape-orientation panels between 45″ and 80″. Check the rear label of the display for its pattern before ordering, since the screen size alone does not confirm it.
Yes. A locking hole accepts a padlock so the display cannot be removed from the bracket without it. The padlock itself is required but not included, so it should be specified separately for public or commercial installations such as lobbies, retail floors, and transport areas.
The VSVW13-46T suits 45″-70″ panels, the VSVW13-48T suits 45″-80″ panels in landscape orientation, and the VSVW13-610T suits up to 110″ at 130 kg. Choose by the panel’s VESA pattern and per-screen weight, and confirm the wall can carry the load.
