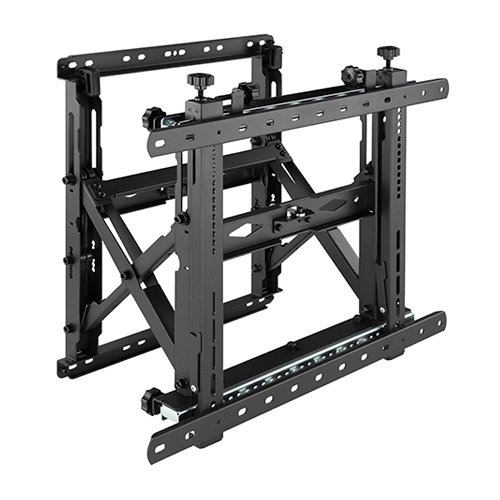

The VSVW13-46T is a heavy-duty push-pull video wall mount for 45″-70″ displays rated to 70kg, built on a 2.5mm-gauge wall plate paired with a 2mm bracket arm, thicker steel than VSYS specs on its standard signage-class push-pull mounts to carry the added per-panel weight this range targets. Rail travel runs 120mm to 325mm, holding full rear access to cabling at any point before the carriage seats flush again for a finished array.

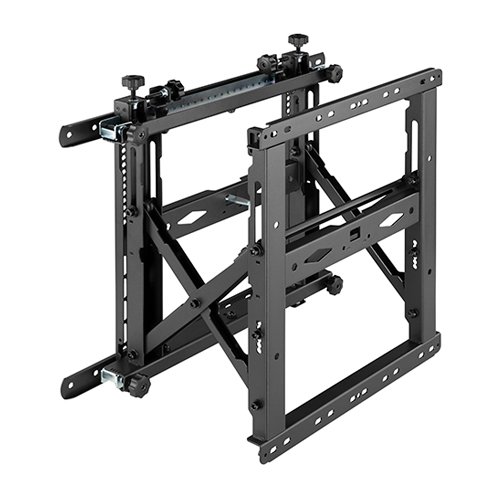

Once extended, the carriage itself functions as a kickstand across the full 205mm of travel, holding the panel open hands-free while cabling is routed or components are swapped, rather than requiring a second person to brace the display’s weight. Bracket-level adjustment of 13.5mm in depth and 13mm in height is the tolerance used to bring every panel in a populated array into true flush alignment with its neighbors, and a separate quick-release plate lets one panel come off the wall bracket entirely for bench service without unbolting the surrounding frame.
The VSVW13-46T is specified where a video wall array needs to carry heavier, larger-format panels than a typical 46″ signage mount is rated for: control rooms, retail flagship video walls, and interactive display walls in the 45″-70″ range where 70kg of per-panel capacity matters. The kickstand pop-out and quick-release plate are what make ongoing service realistic on a permanently installed array, technicians don’t need to dismount neighboring panels or brace the display by hand to get behind it.
For lighter panels under 45kg or smaller-format displays, the VSVW02-46T is the more cost-effective specification in the same push-pull category. This model earns its place in the lineup specifically at the heavier end.
Rated for solid wall installation, reflecting the higher load path through a single wall-plate location at 70kg. The kickstand carriage should be engaged (panel popped out and self-supporting) before any cabling work begins, disengage only once cabling is complete and the panel is ready to close flush. Micro-adjustment and toolless tilt are used after the initial hang to align each panel within the array. Given the load rating and multi-panel alignment tolerances involved, professional installation is strongly recommended and available UAE-wide on request.
| Product Category | Video Wall Mount |
| Build Class | Heavy-Duty |
| Material | Steel and Plastic |
| Metal Sheet Thickness | Wall Plate: 2.5mm; Bracket Arm: 2mm |
| Surface Finish | Powder Coating, Fine Texture Black |
| Overall Dimensions | 640 x 120~325 x 544mm (25.2″ x 4.7″~12.8″ x 21.4″) |
| Fit Screen Size | 45″-70″ |
| Mounting Hole Pattern | VESA |
| VESA Compatibility | 200×200, 300×200, 400×200, 300×300, 400×300, 400×400, 600×400 |
| Maximum Mounting Hole Spread | 604 x 405mm |
| Weight Capacity (Per Screen) | 70kg (154lbs) |
| Screen Quantity | 1 (modular system for multi-panel arrays) |
| Extension Range | 120mm to 325mm (4.7″ to 12.8″) from wall |
| Micro-Adjustment | Depth: 13.5mm; Height: 13mm |
| Tilt Range | +2 degrees / -3 degrees |
| Orientation | Portrait or Landscape |
| Installation | Solid wall only |
| Service Access | Quick-release plate, kickstand carriage |
| Anti-Theft | Yes, locking pin |
| Cable Management | No |
Once the panel is popped out along its 120-325mm extension range, the kickstand carriage holds it open and self-supporting at any point in that travel without the installer bracing it by hand. This frees both hands for cabling or component work behind the panel, and the carriage releases smoothly when it’s time to push the display back flush.
The pop-out extends the panel while it stays attached to the wall plate. The quick-release plate goes further, it lets the display be lifted completely off the wall bracket for bench service or replacement, without unbolting the full mount from the wall. Both features work together for different levels of access.
The VSVW13-46T carries up to 70kg per screen against the VSVW02-46T’s 45kg, and adds a quick-release plate and kickstand carriage on top of the pop-out mechanism. It’s the right choice when the array uses larger or heavier 45″-70″ panels; for lighter displays, the VSVW02-46T is the more cost-effective option in the same push-pull category.
Yes. The bracket and wall plate hole pattern support both portrait and landscape mounting, which is common in interactive display walls and digital signage layouts that mix orientations across a single installation, without requiring a separate bracket for each orientation.

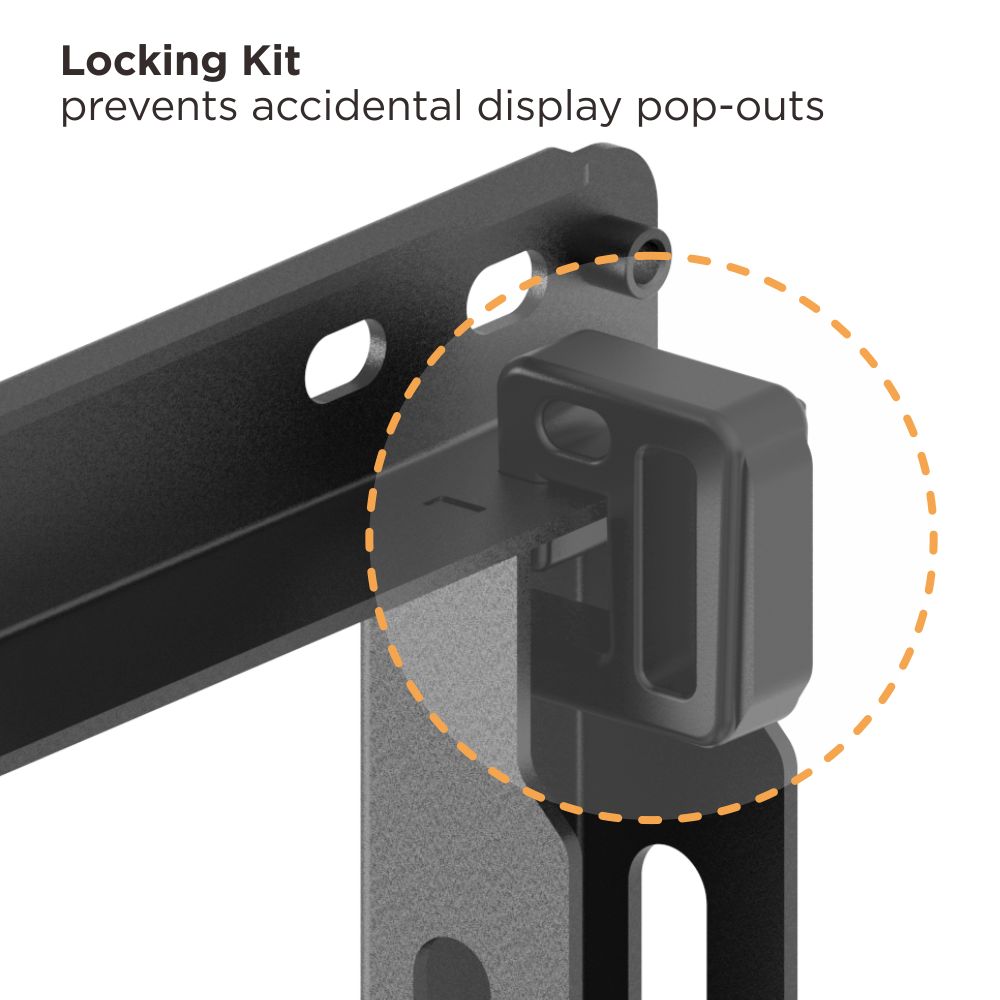

It prevents the pop-out mechanism from being triggered accidentally or by unauthorized hands once the panel is closed and locked flush, relevant for public-facing video walls in retail, transit, or other unsupervised commercial spaces where the display is within physical reach.
Yes. Given the 70kg load rating and the alignment tolerances required across a multi-panel video wall array, professional installation is strongly recommended and available UAE-wide on request through the same quote form or WhatsApp used for pricing and availability.
