Use the button above or message us on WhatsApp for a quote, technical documentation, or engineering support on the VTLX18H-610TW-B.

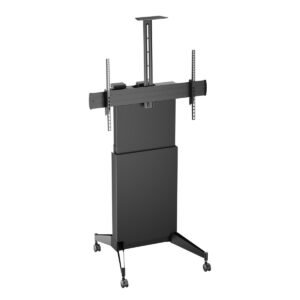

The VTLX18H-610TW-B is the all-black version of the VTLX18H-610TW, a motorized height-adjustable mobile TV cart for 55″-100″ displays up to 120 kg, with VESA patterns up to 1000×600 mm. A powered lift raises the display between 1200 mm and 1650 mm from a 2-memory RF remote or a button pad, so presenting height can be set without cranking by hand.
The black finish runs through the whole cart, frame and panel, in contrast to the white-panel versions of this model. Ratings match the other colours: a 2 mm steel VESA panel and bracket arm, a 4x strength test, a 10 degree slope test, and +5/-10 degrees of tilt. The cart carries CE, ErP, FCC, and AS/NZS test documentation.
At 55″-100″ and 120 kg with powered height adjustment, the cart suits conference rooms, classrooms, trade-show stands, and training spaces where several people share one display and need to change its height quickly. The all-black finish suits darker rooms and studios where a white panel would be distracting.

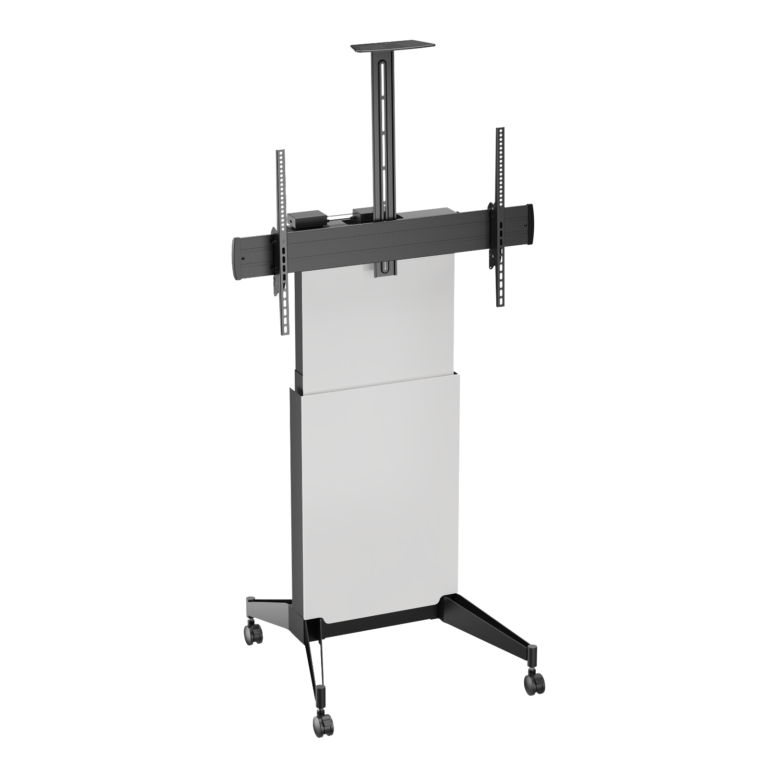

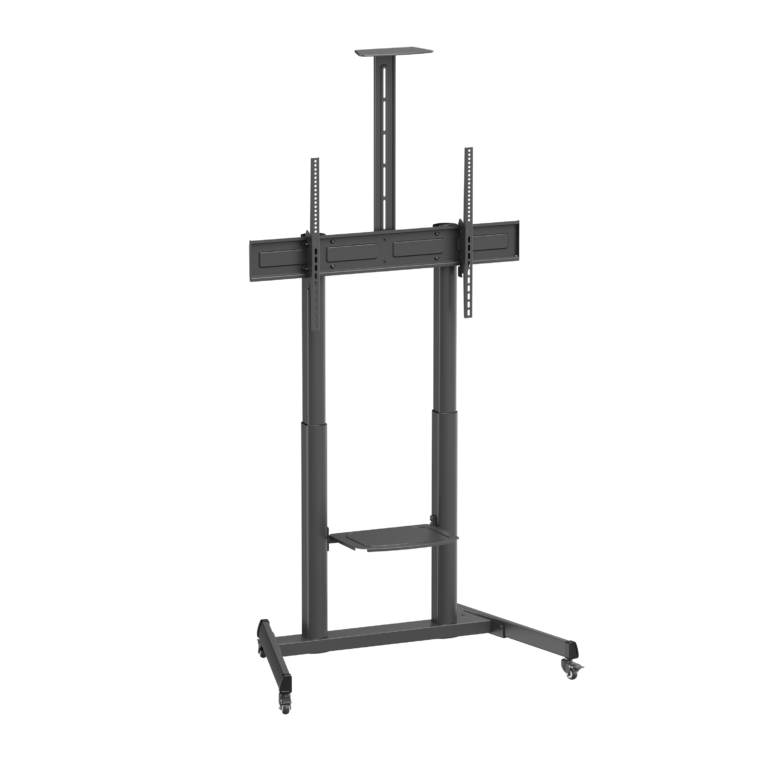

For fixed-height carts at the same display size, the VTLX16-69FW and VTLX17-610TW are manual alternatives, and for a lighter look the white-panel VTLX18H-610TW has identical ratings.
The VTLX18H-610TW-B arrives with the column, base, motor assembly, panel, and accessory kit in a compartment polybag. Two people are recommended for fitting a display of this size, with the casters locked before the display is hung, and the cable run should leave slack for the full lift travel.
| Product Category | TV Cart, motorized |
| Build Class | Premium |
| Material | Steel, plastic, particle board and melamine |
| Sheet Thickness | VESA panel 2 mm, bracket arm 2 mm, cold-rolled steel (0.079″) |
| Surface Finish | Powder coating, matte black and black |

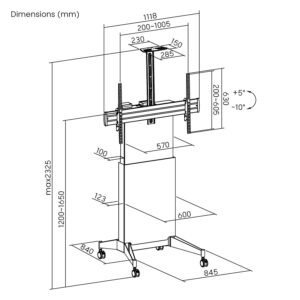

| Dimensions | 1118 x 845 x 1520-2325 mm (44″ x 33.3″ x 59.8″-91.5″) |
| Column Size | 80 x 50 x 1.5 mm and 75 x 45 x 1.5 mm (3.1″ x 2″ x 0.059″ and 3″ x 1.8″ x 0.059″) |
| Fit Screen Size | 55″-100″ |
| VESA Compatibility | 200×200, 200×300, 300×200, 200×400, 400×200, 300×300, 300×400, 400×300, 600×200, 350×350, 500×300, 400×400, 600×300, 500×400, 400×600, 600×400, 700×400, 400×800, 800×400, 700×500, 600×600, 800×500, 800×600, 900×600, 1000×600 |
| TV Weight Capacity | 120 kg (264 lbs) |
| Strength Test Rating | 4x rated capacity |
| Screen Quantity | 1 |
| Tilt Range | +5 degrees / -10 degrees |
| TV Height Adjustable | Yes, motorized, 1200 mm to 1650 mm (47.2″ to 65″) |
| Camera Rack Weight Capacity | 5 kg (11 lbs) |
| Cable Management | No |
| Base Type | Caster, 3″ wheel diameter |
| 10 Degree Slope Test | Yes |
| Certification | CE, ErP, FCC, AS/NZS report for national differences |
| Direction Indicator | Yes |
| Accessory Kit | Compartment polybag |
The structure and ratings are the same across the VTLX18H colours. The -B version is all black, frame and panel, while other versions pair a black or white frame with a white panel. The 120 kg rating, 1200-1650 mm lift, and 4x strength test are unchanged.

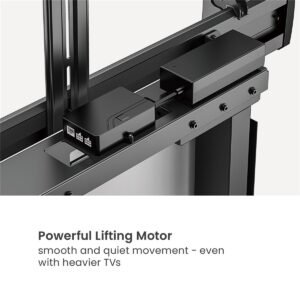

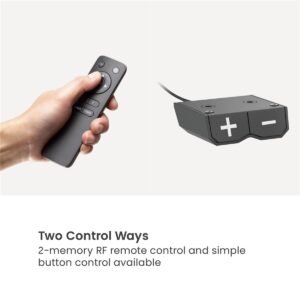

It has two control methods: a 2-memory RF remote and a button pad. The memory function stores preset heights, so a presenter can return the display to a known position quickly instead of adjusting it by eye each time the cart is moved or the room is reset.

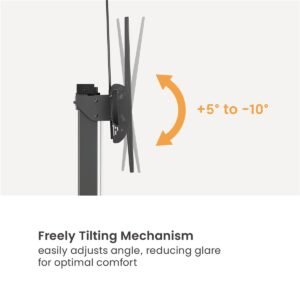

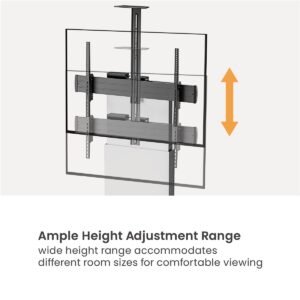

The bracket travels from 1200 mm to 1650 mm, powered by the lift motor. A free-tilting head adds +5/-10 degrees independently of the lift, so glare can be corrected after the height is set. Total cart height with the column extended is up to 2325 mm.
No. This model has no integrated cable routing, so display and power cables should be dressed by the installer along the column with clips or ties, allowing enough slack for the full 1200-1650 mm lift travel so that raising the display never pulls on a connector.
It supports 25 patterns, from 200×200 mm up to 1000×600 mm, including 600×400, 800×400, 800×600, and 900×600. Check the pattern on the rear label of the display before ordering, as the screen diagonal alone does not confirm that the panel will fit.
