The VTLX18H-610TW is a motorized mobile TV cart rated to 120kg for 55″-100″ displays, replacing the manual crank or spring-release mechanism used on VSYS’s other height-adjustable carts with a powered lift motor. The motor drives the column smoothly and quietly under load, controlled either by a 2-memory RF remote or a simple button pad wired to the base, so the same preset height can be recalled without re-measuring each time the cart moves rooms.

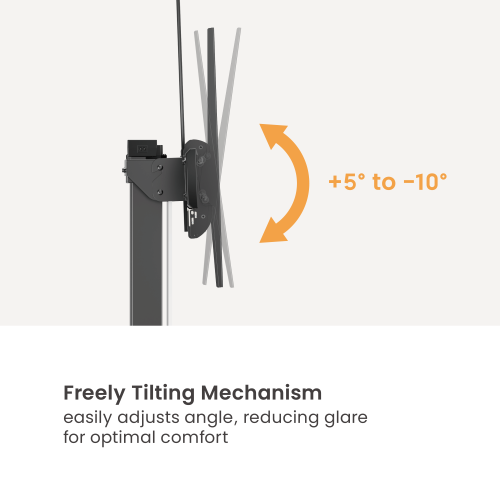

The frame is validated to 4x its 120kg commercial rating and passes a 10-degree slope stability test. A freely tilting bracket head adds +5° to -10° adjustment independent of the motorized height axis, and the column construction uses the same steel gauge (2mm cold-rolled sheet) as VSYS’s manual carts, so the motor adds convenience without a change in structural rating.
The motorized lift and remote/button control put the VTLX18H-610TW in shared conference rooms, training rooms, and video-conferencing setups where the display height needs to change frequently between users or session types and a manual crank would slow that transition down. Recallable presets via the RF remote matter in rooms shared by multiple teams, since a technician doesn’t need to re-measure the correct eye-level height each time.
It also suits accessibility-driven deployments in UAE corporate and education settings, where powered height adjustment removes the physical effort a manual mechanism requires. Where budget favors a manual mechanism over motorized convenience at the same 55″-100″ range, VSYS’s crank-adjustable and telescopic cart SKUs are the lower-cost alternative.
The VTLX18H-610TW ships partially assembled; the motorized column, base legs, and casters are bolted together first, followed by the bracket head and camera shelf. The panel bracket attaches to the display’s VESA pattern (200×200mm up to 1000×600mm) before it’s hung on the bracket head, and the RF remote is paired to the base unit during setup. Given the display weight and the motorized mechanism, professional installation is recommended and available UAE-wide on request.
| Product Category | Motorized TV Cart |
| Material | Steel, Plastic, Particle Board & Melamine |
| Metal Sheet Thickness | VESA Panel & Bracket Arm: 2mm cold-rolled sheet (0.079″) |
| Surface Finish | Powder Coating |
| Dimensions | 1118 x 845 x 1520-2325mm (44″ x 33.3″ x 59.8″-91.5″) |
| Column Size (Main / Extension) | 80 x 50 x 1.5mm / 75 x 45 x 1.5mm |
| Fit Screen Size | 55″-100″ |
| VESA Compatibility | 200×200 up to 1000×600mm (25 patterns) |
| Weight Capacity | 120kg (264lbs) |
| Strength Test Rating | 4x rated capacity (480kg static load) |
| Tilt Range | +5° to -10° |
| Height Adjustment Mechanism | Motorized, RF remote or button control |
| Height Adjustment Range | 1200-1650mm |
| Camera Shelf Weight Capacity | 5kg (11lbs) |
| Cable Management | No dedicated channel |
| Base Type | Caster, heavy-duty lockable |
| Slope Stability Test | 10° slope, passed |
| Certification | CE, ErP, FCC, AS/NZS national differences report |
The VTLX18H-610TW is strength-tested to four times its rated capacity, a 480kg static load, before the 120kg commercial figure is approved for the spec sheet. It also passes a 10-degree slope stability test and carries CE, ErP, and FCC certification for commercial procurement requirements.

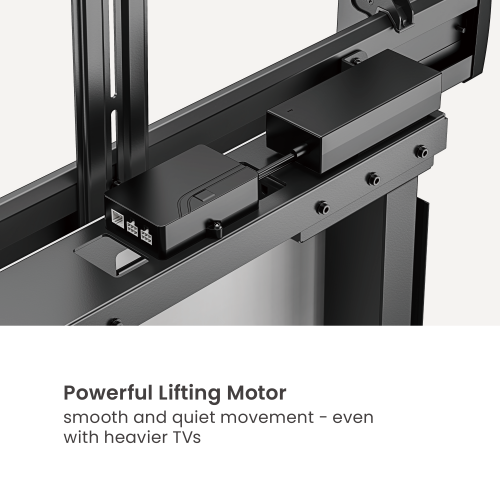

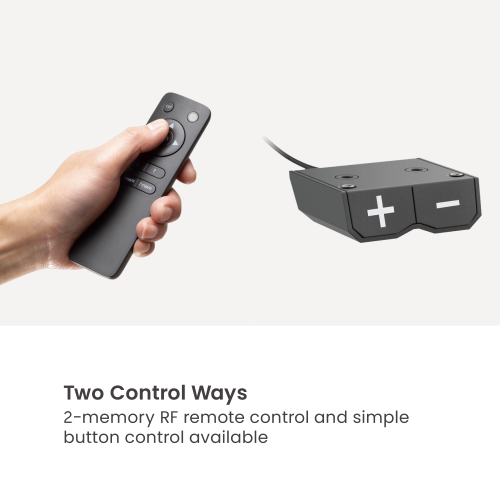

A powered lift motor drives the column smoothly and quietly, controlled either by a 2-memory RF remote or a simple wired button pad at the base. The RF remote can recall a preset height without re-measuring, which matters in rooms shared by multiple teams or session types.
The steel gauge, VESA range, and structural testing standard are the same; only the height mechanism changes. A motor replaces the manual crank or spring-release lock, adding convenience and remote recall without a change to the underlying weight rating or strength-test multiplier.
Up to 1000x600mm across 25 total patterns, the widest range in the VSYS TV cart lineup. Confirm the exact VESA pattern on the target 55″-100″ display against the full engineering specification before ordering, since hole spacing varies by panel manufacturer and model year.
No dedicated cable channel is built into this model, unlike VSYS carts with an integrated pegboard panel. Power and signal cabling route along the motorized column’s exterior, so a separate cable sleeve or clip system is recommended if fully concealed routing is required for the install.
CE, ErP, and FCC certification, plus an AS/NZS report covering national differences for markets that require it. These sit alongside the 4x strength-test rating and 10-degree slope stability test as the documentation set typically requested for commercial and government procurement in the UAE and GCC.
Yes. Given the display weight and the motorized mechanism’s electrical connection, professional installation is recommended and available UAE-wide on request through VSYS, covering both the physical mount and the RF remote pairing step during setup for conference rooms and shared training spaces.
