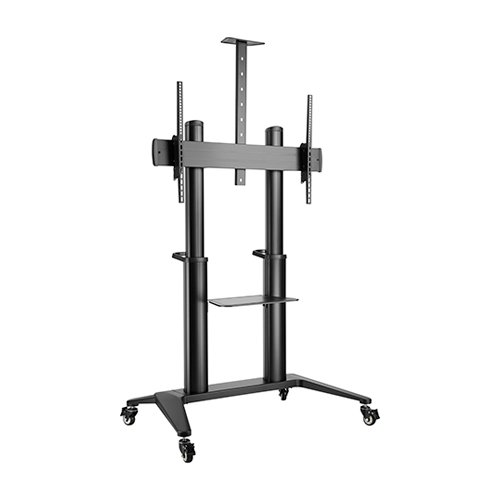

The VTLX12-610TW is a large-format aluminum mobile cart rated to 140kg for 70″-120″ displays, built around a dual-column aluminum frame (135×130×1.6mm main tube, 105×103×1.6mm extension tube per side) that gives a 350mm height-adjustment range from 1250mm to 1600mm. Aluminum construction keeps the frame lighter than an equivalent steel cart at this size class without dropping the weight rating, which matters when a 120″ panel and its own mass are already pushing the practical limit of what one cart can safely reposition.
The frame is validated to 3x its 140kg commercial rating, a lower multiplier than the 4x standard on VSYS’s mid-size carts, reflecting the different engineering margin appropriate at this weight class. A free-tilting bracket head gives +5° to -10° adjustment for glare control, and the column integrates cable routing plus a height-adjustable equipment shelf and camera shelf, each rated to 5kg.
The 140kg rating and 70″-120″ range put the VTLX12-610TW in large-format displays for boardrooms, auditoriums, and control-room secondary screens, where a fixed wall mount isn’t practical because the display needs to move between rooms or events. The aluminum frame’s lower mass relative to an equivalent steel cart matters here, since moving a fully-loaded large-format cart is already a two-person task and every kilogram of frame weight adds to that.
It also suits corporate campuses and event AV rental fleets across the UAE and GCC where a single premium cart is shared across multiple large-panel deployments rather than dedicated to one room. Where the display genuinely stays in one position permanently, a wall mount from the VSYS range is the more cost-effective category instead of this SKU.
The VTLX12-610TW ships partially assembled; the dual-column frame, base, and casters are bolted together first, followed by the bracket head and shelves. The panel bracket attaches to the display’s VESA pattern (200×200mm up to 1000×600mm) before it’s hung on the bracket head, and column height is set once the base is positioned. Given the size and weight class involved, at least two installers are required for the panel-to-bracket step, and professional installation is recommended.
| Product Category | Large-Format Aluminum TV Cart |
| Material | Aluminum, Steel, Plastic |
| Surface Finish | Powder Coating, Matte Black / Gloss White |
| Dimensions | 1250 x 760 x 2333mm (49.2″ x 29.9″ x 91.9″) |
| Column Size (Main / Extension) | 135 x 130 x 1.6 x 725mm / 105 x 103 x 1.6 x 725mm |
| Fit Screen Size | 70″-120″ |
| VESA Compatibility | 200×200, 300×200, 400×200, 300×300, 400×300, 400×400, 600×400, 800×400, 800×600, 1000×600 |
| Weight Capacity | 140kg (308lbs) |
| Strength Test Rating | 3x rated capacity (420kg static load) |
| Tilt Range | +5° to -10° |
| Height Adjustment Range | 350mm, 1250-1600mm floor-to-bracket |
| Shelf Weight Capacity | 5kg (11lbs), height adjustable |
| Camera Shelf Weight Capacity | 5kg (11lbs), height adjustable |
| Cable Management | Integrated, routed through column |
| Base Type | Caster, heavy-duty lockable |
| Direction Indicator | Yes |
The VTLX12-610TW is strength-tested to three times its rated capacity, a 420kg static load, before the 140kg commercial figure is approved for the spec sheet. The 3x multiplier is lower than the 4x standard on VSYS’s mid-size carts, reflecting the engineering margin appropriate at this larger weight class.
Aluminum keeps the dual-column frame lighter than an equivalent steel cart without reducing the 140kg rating, which matters because a fully-loaded large-format cart with a 120″ panel already requires two people to reposition safely. Every kilogram of frame weight adds directly to that handling load.
The dual-column frame moves through a 350mm range, from 1250mm to 1600mm floor-to-bracket height. That range is narrower than the mid-size VSYS carts by design, since the enhanced dual-column structure prioritizes lateral stability at large-panel weight over the widest possible height sweep.
Up to 1000x600mm, covering ten patterns from 200x200mm through 300×200, 400×200, 300×300, 400×300, 400×400, 600×400, 800×400, and 800x600mm as well. Confirm the exact VESA pattern on the target large-format display against this list before ordering, since patterns vary widely across 70″-120″ panel manufacturers.

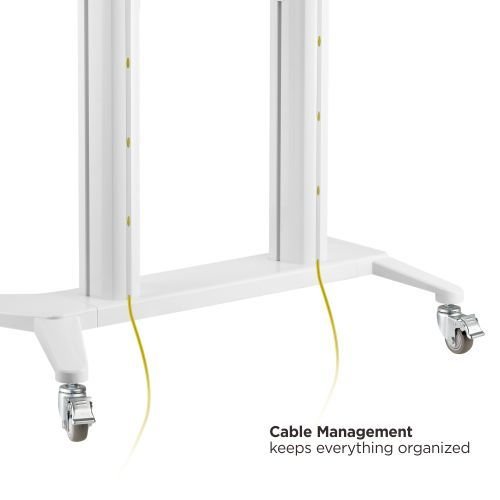

Yes, cabling routes through the dual-column frame itself rather than along an external channel, keeping power and signal cabling out of view on a cart that’s frequently repositioned in view of meeting participants. This is separate from the height-adjustable equipment shelf, which holds AV hardware rather than cable slack.
Both the height-adjustable equipment shelf and the separate camera shelf are rated to 5kg each, sized for a media player, switcher, or PTZ camera rather than heavier rack equipment. Both adjust independently of the main column height setting and the bracket’s tilt.
Yes, and required rather than optional at this size class. At least two installers are needed for the panel-to-bracket step given the size and weight of a 70″-120″ display, and professional installation support is available UAE-wide on request through VSYS.
