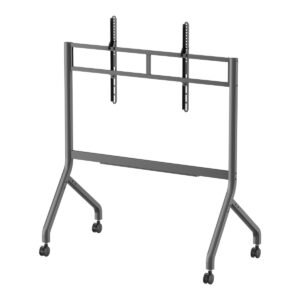

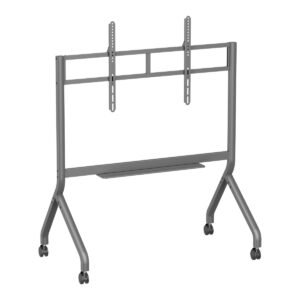

The VTLX16-612FW is a SlimLift heavy-duty mobile TV cart for 60″-110″ displays up to 120 kg, with VESA patterns up to 1200×600 mm, the widest pattern range in the VSYS cart lineup. It is a fixed-height cart in a gunmetal grey steel frame on lockable 3-inch casters, sized for the largest corporate, education, and hospitality displays that still need to move between rooms.
The frame uses the same 50x45x2 mm steel column and 2 mm bracket arm as the smaller SlimLift cart, strength-tested to three times the 120 kg rating and slope-tested at 10 degrees. The overall width grows to 1384 mm to carry 110″ panels, while the depth stays at 801 mm.
At 60″-110″ and 120 kg, the VTLX16-612FW suits large boardrooms, lecture theatres, exhibition stands, and hospitality venues where the biggest displays on the market must be repositioned. Its display height is fixed, so the mounting height is set when the display is hung.
For panels up to 90″ and 90 kg, the VTLS16-69FW is the lighter SlimLift cart, and for 55″-100″ panels the VTLX16-69FW offers 120 kg in a different frame style.
The VTLX16-612FW ships as a frame, base, and bracket arm, with the display hung on the VESA plate and the accessory kit in a compartment polybag. At the 110″ end of the range the display is heavy and wide, so two people are recommended for fitting, with the casters locked before the display is hung.
| Product Category | TV Cart |
| Build Class | Standard |
| Material | Steel, plastic |
| Sheet Thickness | Bracket arm 2 mm cold-rolled steel (0.079″) |
| Column Size | 50 x 45 x 2 mm (2″ x 1.8″ x 0.079″) |
| Surface Finish | Powder coating, gunmetal grey |

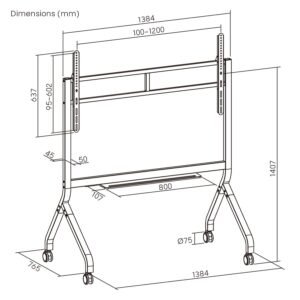

| Dimensions | 1384 x 801 x 1726 mm (54.5″ x 31.5″ x 68″) |
| Fit Screen Size | 60″-110″ |
| VESA Compatibility | 100×100, 200×100, 200×200, 400×200, 300×300, 400×300, 600×200, 400×400, 600×300, 600×400, 800×400, 600×600, 800×600, 900×600, 1000×600, 1200×600 |
| TV Weight Capacity | 120 kg (264 lbs) |
| Strength Test Rating | 3x rated capacity |
| Screen Quantity | 1 |
| TV Height Adjustable | No |
| Shelf Weight Capacity | 3 kg (6.6 lbs), height fixed |
| Cable Management | No |

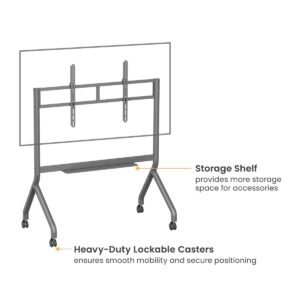

| Base Type | Caster, 3″ wheel diameter |
| 10 Degree Slope Test | Yes |
| Direction Indicator | Yes |
| Accessory Kit | Compartment polybag |
It supports displays from 60″ to 110″ weighing up to 120 kg, with a VESA pattern up to 1200×600 mm. The frame is strength-tested to three times that rating, so 120 kg is the working limit for the display and not a breaking load.
It supports 16 patterns, from 100×100 mm up to 1200×600 mm, including 800×600, 900×600, and 1000×600. That is the widest range in the VSYS cart lineup. Check the pattern printed on the display’s rear label, since the diagonal size alone does not confirm compatibility.
No. The display height is fixed and set where the display is hung on the bracket arm. If a project needs the screen raised or lowered after installation, a height-adjustable or motorized cart such as the VTLX16M-612FW should be specified in place of this fixed-height model.
Yes. It runs on 3-inch casters that lock in place, and the frame is slope-tested at 10 degrees. Move it slowly on level floors, lock the casters before use, and take extra care with a 110″ display, which presents a large sail area.
Both are fixed-height SlimLift carts in a gunmetal grey frame with the same 801 mm depth. The VTLX16-612FW carries 120 kg for 60″-110″ displays with VESA to 1200×600 mm, while the VTLS16-69FW carries 90 kg for 55″-90″ displays with VESA to 900×600 mm.
