| Product Category | Motorized TV Ceiling Mount |
| Rank | Premium |
| Material | Steel, Plastic, Aluminum |
| Metal Sheet Thickness | Bracket Arm THK=1.5mm cold-rolled sheet, VESA Panel THK=1.5mm cold-rolled sheet |
| Surface Finish | Powder Coating |
| Color | Matte Black |
| Dimensions | 872x864x503mm (34.3"x34"x19.8") |
| Fit Screen Size | 43"-86" |
| Fit Curved TV | Yes |
| Mounting Hole Pattern | VESA & Universal |
| VESA Compatible | 200x100, 200x200, 300x200, 400x200, 300x300, 400x300, 600x200, 400x400, 600x300, 600x400, 800x400 |
| Max. Mounting Hole | 800x400 |
| Weight Capacity | 45kg (99lbs) |
| Strength Tested | 4 Times Approved |
| Profile | 177mm (7") |
| Tilt Range | 0~-75° |
| Swivel Range | +90°~-90° |
| Screen Level | +2°~-2° |
| Installation | Double Stud (406mm), Ceiling Mounted |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| AV Component Shelf | No |
| Cable Management | Yes |
| Anti-theft | No |
| Power Supply | Input: AC 100~240V, 50/60Hz; Output: DC 29V, 1A |
| Power Cord Length | 3m (9.8ft) |
| Controller Type | Application Control, Radio Frequency (RF) Remote |
| Bubble Level | No |
| Accessory Kit Package | Normal/Ziplock Polybag, Compartment Polybag |
| Certification | CE, ErP, EU Cybersecurity, FCC, RoHS |
| Silk Screen | Can be silkscreen printed |

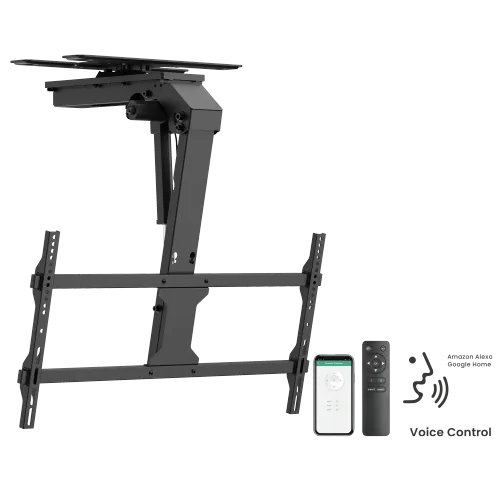

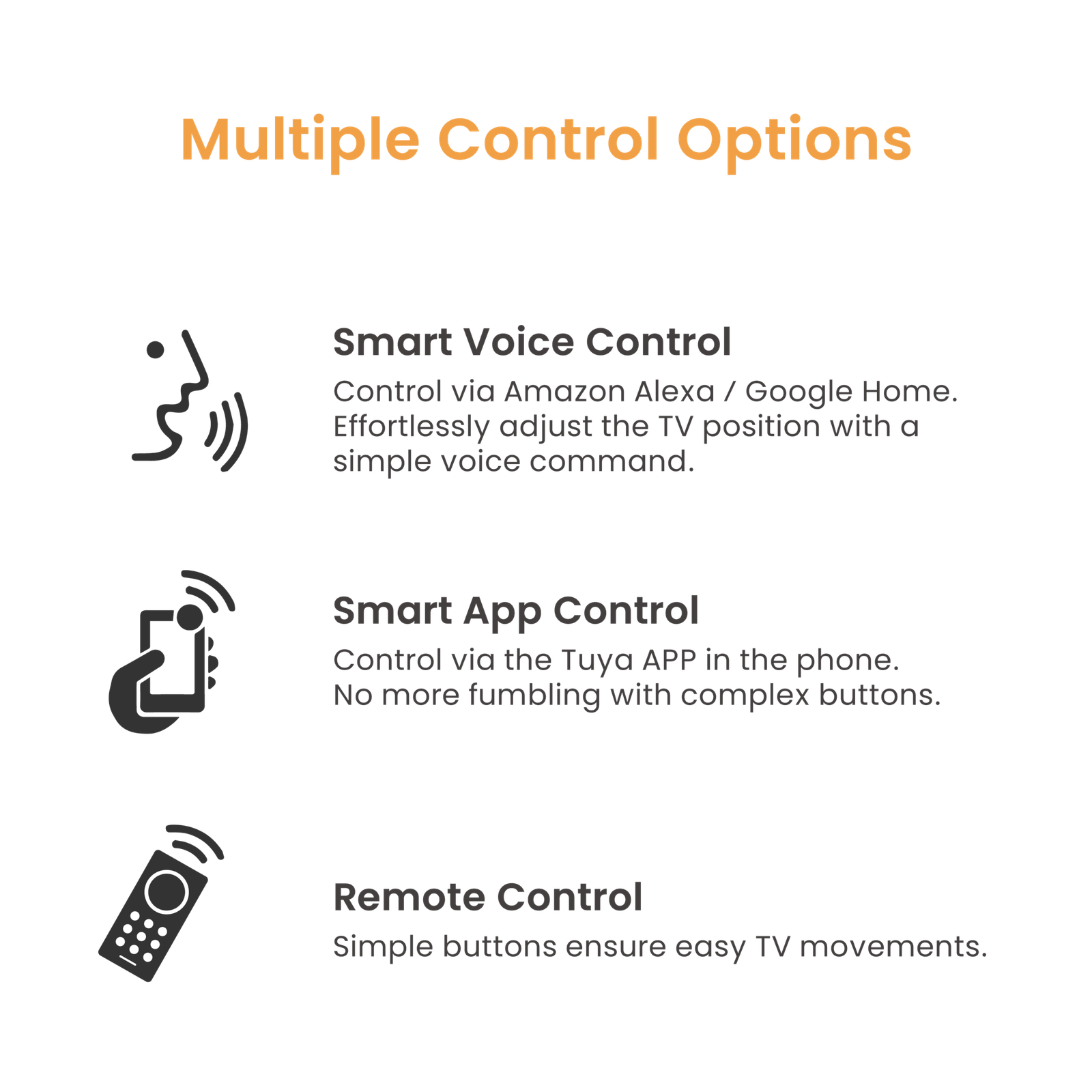

The Pinnacle of Smart Home Integration and Space Management. Designing a premium home cinema or executive conference room often requires balancing large-scale technology with refined interior aesthetics. While an 86-inch display offers an immersive experience, its permanent presence on a wall can overwhelm the room’s decor or block breathtaking views. Traditional static mounts provide no solution for “hiding” the technology when it’s not in use, and many motorized alternatives lack the structural power to safely manage oversized, heavy-duty panels. The VSYS VCM-M0748DS is a high-performance smart solution engineered for the largest modern displays. This motorized flip-down mount allows massive screens—from 43″ up to 86″—to be tucked away flat against the ceiling and deployed instantly. Equipped with a premium motor and electric push rod, the mount operates with exceptional quietness and speed. Its standout feature is multi-modal smart control: you can adjust the viewing position via the included RF remote, the Tuya Smart App, or even voice commands through Alexa or Google Home. With a +90° to -90° swivel range and a 0° to -75° flip-down tilt, it provides total viewing flexibility for any corner of the room. When not in use, the screen disappears into the ceiling, leaving your architectural lines clean and undisturbed.
Remote Control TV Mount , Powered by Tuya , Electric TV Lift Mount , TV Ceiling Mount , Motorized TV Mount , Folding TV Mount , Full Motion TV Wall Mount , Smart Voice Control

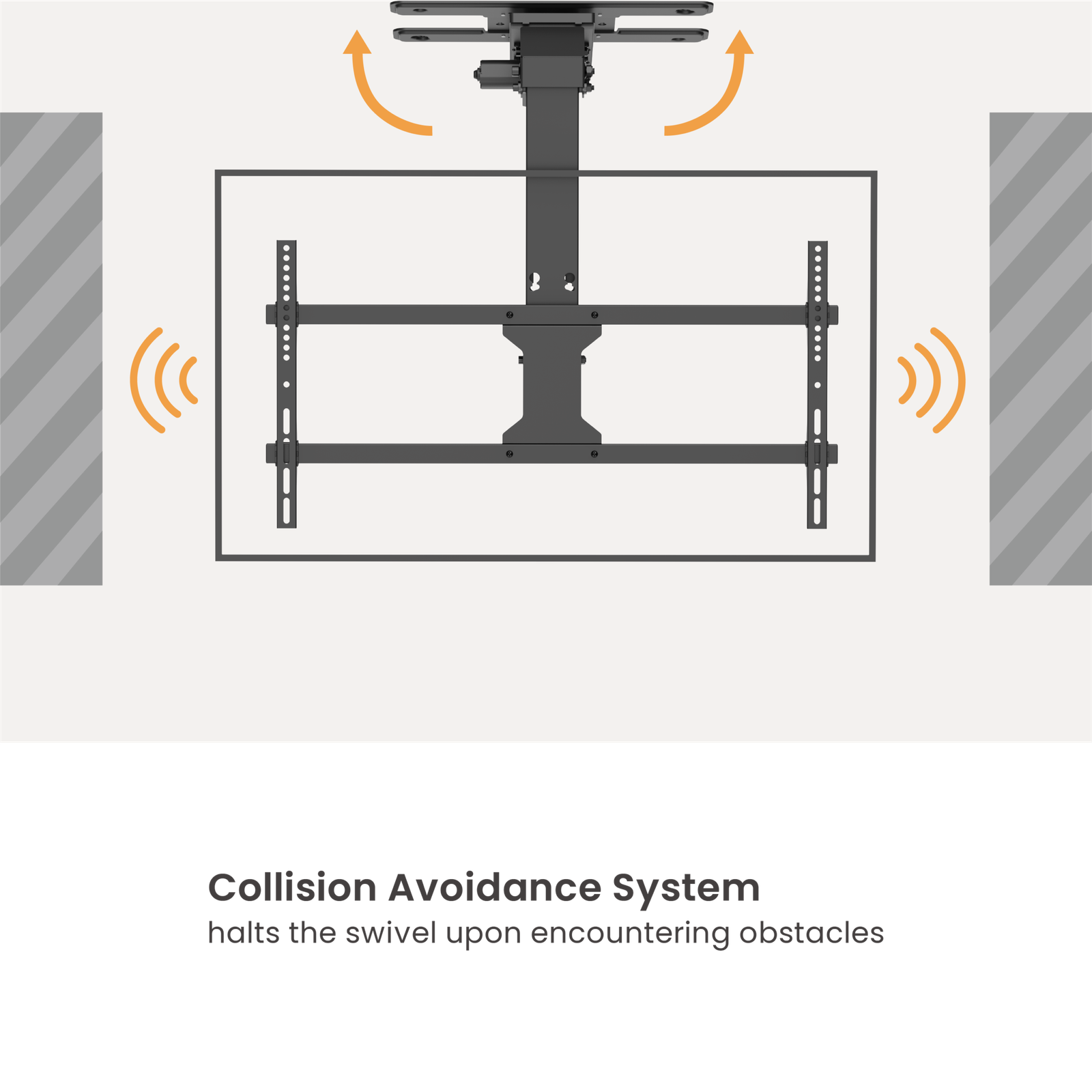

Standard mounts are static and space-consuming. The VCM-M0748DS solves this by offering a smart motorized flip-down and swivel system that supports a max 50kg capacity for screens up to 86″. It features an intelligent collision avoidance system to safeguard your investment and supports both standard and double-stud installation for maximum structural safety. It is the definitive choice for luxury villas, high-end hospitality, and smart corporate offices across the UAE and the wider GCC.
In upscale UAE residences, a motorized mount hides the television in a cabinet or ceiling recess until needed. A quiet motor raises or lowers the screen at the push of a button, preserving clean interior lines.
Boardrooms in the GCC use motorized lifts to deploy displays only during presentations, keeping the conference table uncluttered. Remote control allows executives to reveal the screen seamlessly at meeting time.
Yes. Motorized lifts enable lecturers to conceal a large display when using a whiteboard and raise it for multimedia sessions. This dual‑use space is valuable in resource‑constrained CIS classrooms.
African hotels and lodges can hide TVs inside cabinets to maintain local décor aesthetics. Motorized lifts provide the convenience of bringing the screen into view for guests without leaving it exposed all the time.
They solve the issue of integrating large screens into rooms where design or security requires the display to be concealed when not in use, such as in multipurpose spaces or heritage buildings.
