| Product Category: | Projector Mount Component |
| Rank: | Standard |
| Material: | Plastic,Steel |
| Surface Finish: | Powder Coating |
| Color: | Matte Black |
| Dimensions: | 140x470x470mm (5.5"x18.5"x18.5") |
| Weight Capacity: | 35kg (77lbs) |

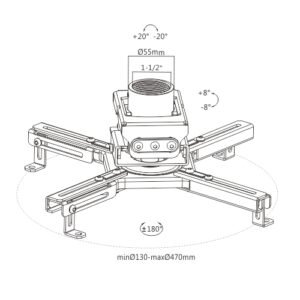

| Mounting Range: | 130~470mm (5.1"~18.5") |
| Tilt Range: | +20°~-20° |
| Swivel Range: | +8°~-8° |
| Rotation: | +180°~-180° |
| Installation: | Ceiling Mounted |
| Cable Management: | Yes |
| Accessory Kit Package: | Normal/Ziplock Polybag |

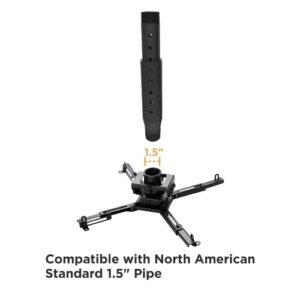

Using a North American standard 1.5’’ NPT pipe size, the PRB-20-H interface bracket is compatible with various extension poles and ceiling plates. Whether the installation required is on a flat or pitched ceiling, the PRB-20-H interface bracket provides endless possibilities for customization. Manufactured using high-grade steel, for durability and strong support for projectors up to 35kg/77lbs. A quick release function allows the projector to be installed in a few minutes and removed for maintenance without having to re-align the projector. Multiple adjustments provide the best projected image for the optimum viewing experience.
Projector Interface Bracket , Projector Ceiling Mount Kit
