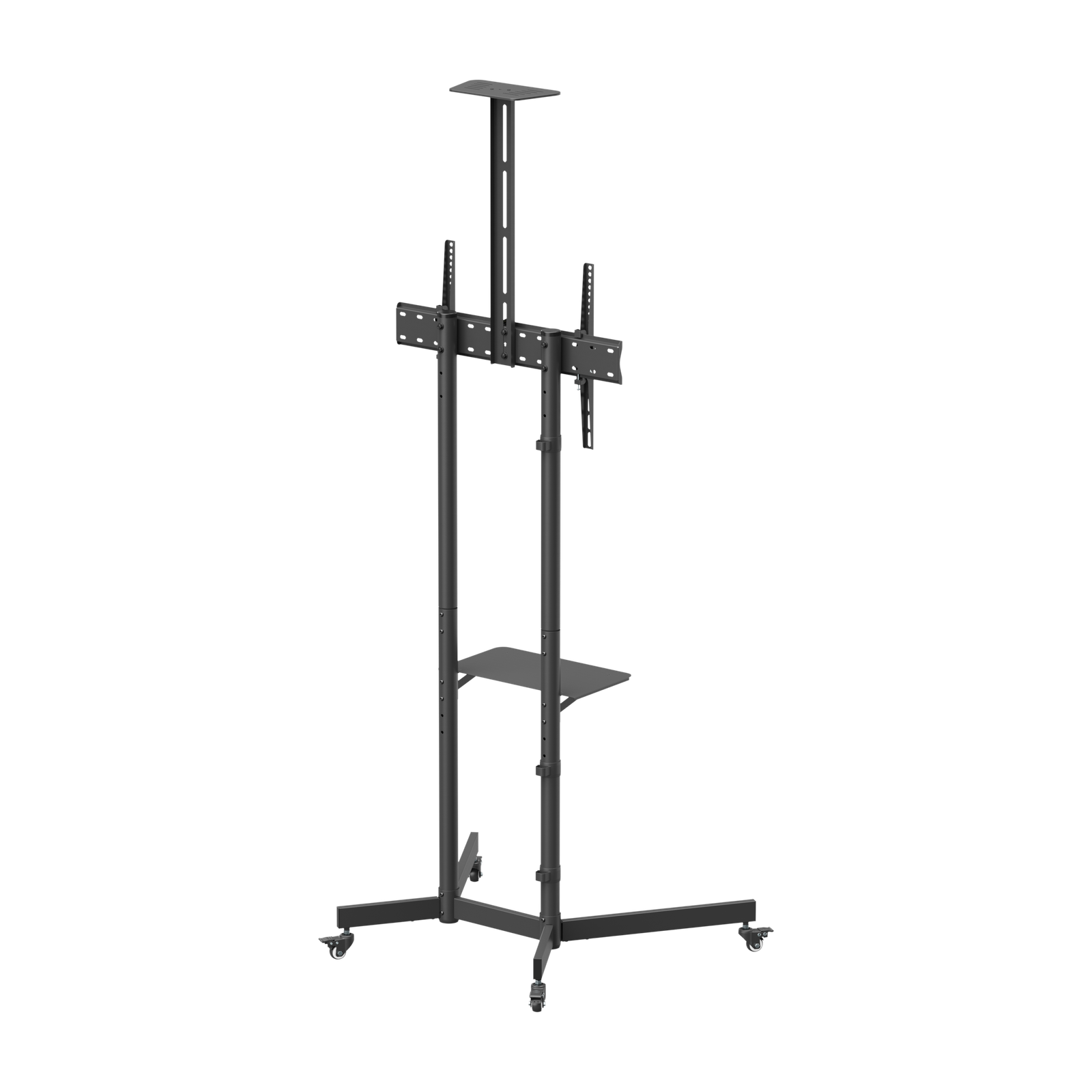

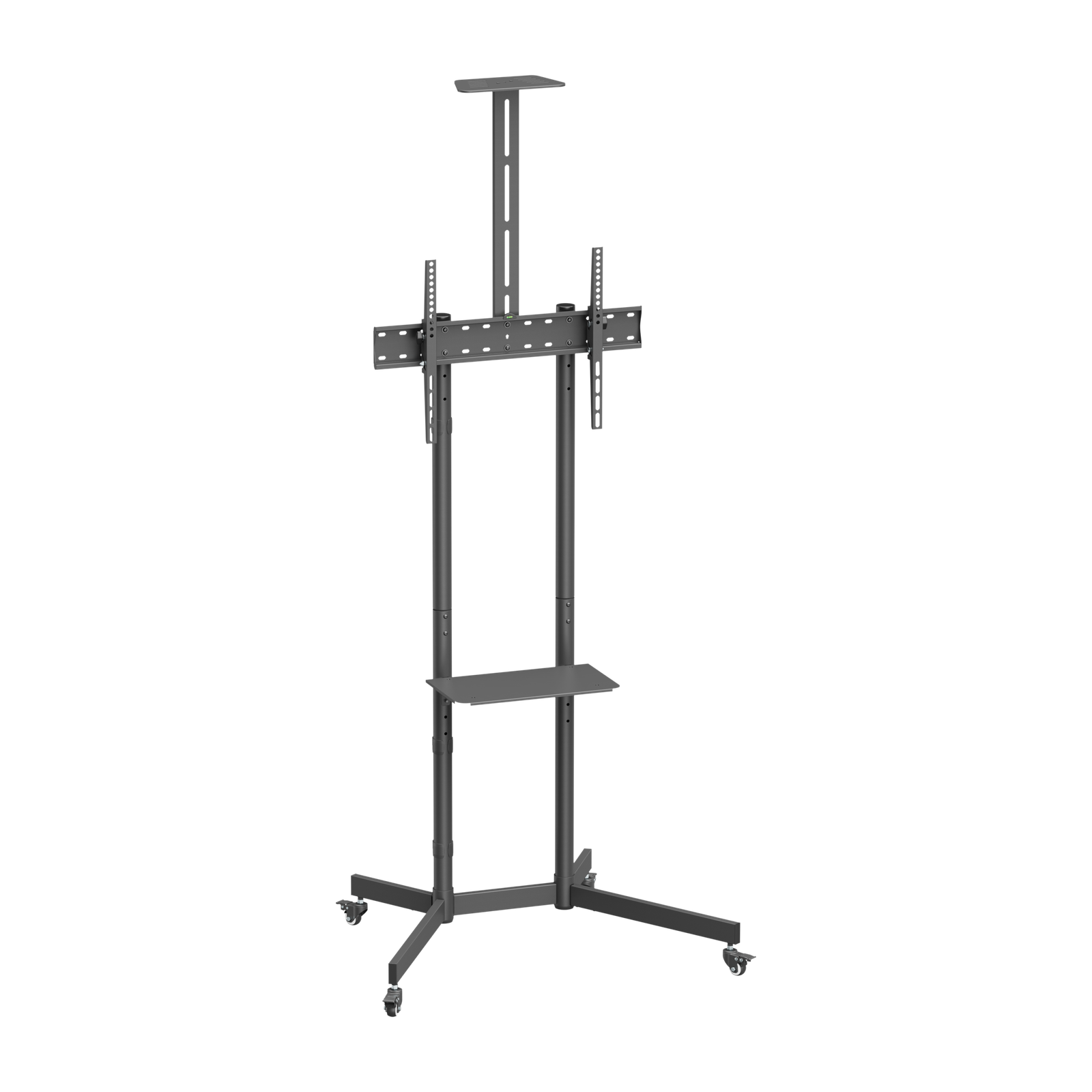

The VTL-1042T uses two independent round steel columns (⌀45mm, 1.0mm wall, 745mm each) rather than a single extruded shaft, which keeps material cost down while still giving the panel bracket two load-bearing points. The frame is strength-tested to four times its rated 45kg capacity, and the 1.5mm cold-rolled VESA panel at the bracket carries that load down through both columns into the caster base.

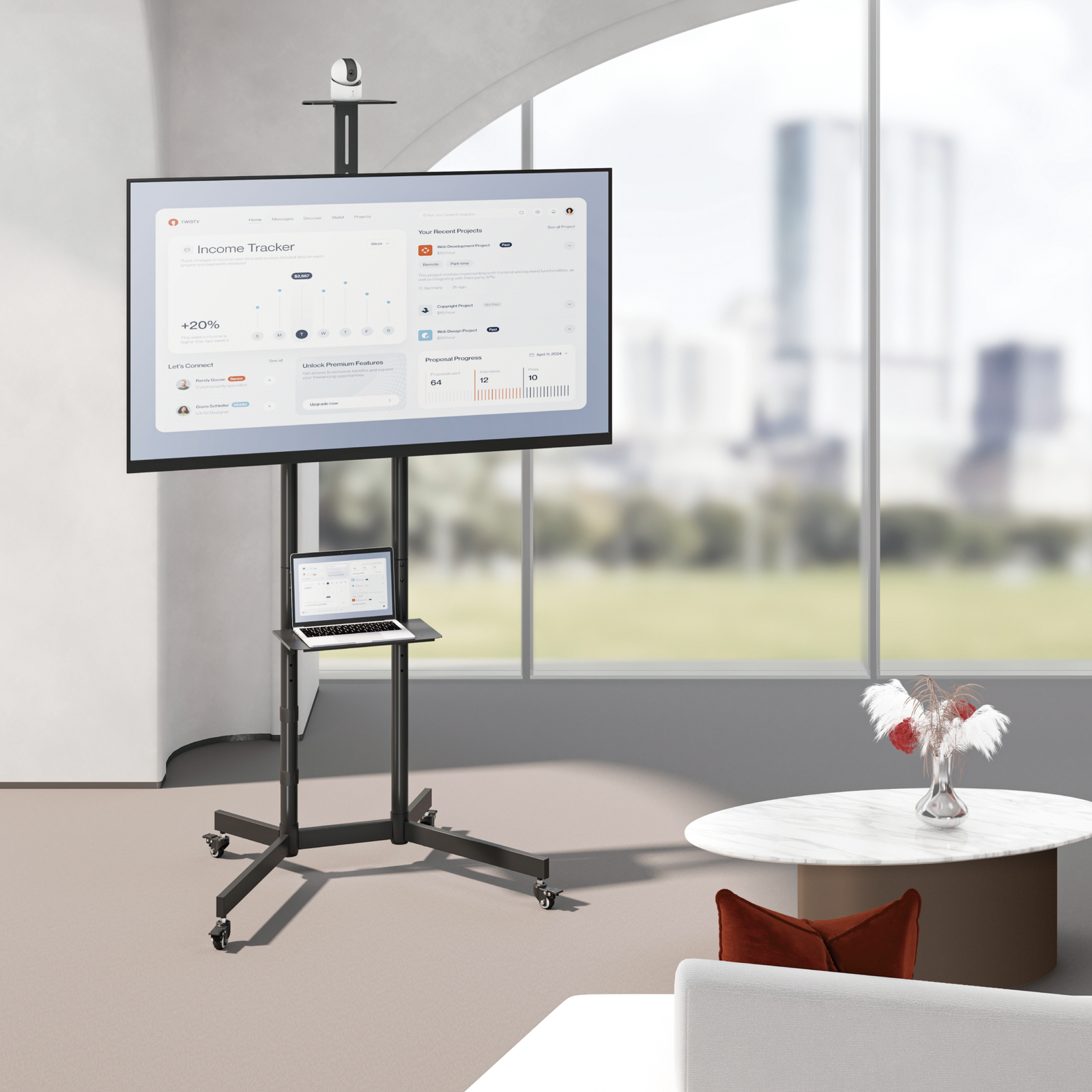

What sets this cart apart from a plain TV stand is the dedicated camera shelf, mounted above the panel on its own bracket, separate from the lower equipment shelf. That separation matters for video-conferencing setups: the camera sits at a fixed working height relative to the display regardless of what’s on the lower shelf, rather than being propped on top of the panel bezel.
The camera-shelf pairing makes this cart a fit for small to mid-size video-conferencing rooms, huddle spaces, and training rooms where a webcam or PTZ camera needs a fixed position above the display rather than balanced on the panel bezel. The 45kg ceiling and 37″-70″ range cover most single-screen conferencing panels without stepping up to a heavier-duty cart.
It’s not the right choice for large-format panels above 70″ or above 45kg, dual-screen setups, or installs needing more than 108mm of height travel; those call for VSYS’s heavier dual-column cart SKUs instead. It’s also not intended for permanent wall or ceiling positions.
The column and base assembly ship pre-assembled, with the panel bracket, camera shelf, and equipment shelf attached using the included fixings pack. The camera shelf mounts above the panel bracket on its own support arm, independent of the equipment shelf lower on the columns, so each can be positioned separately during setup. Height is adjusted across the 108mm range at the bracket, and tilt is set at +12° to -12° without additional tools.
| Product Category | Mobile TV Cart with Camera Shelf |
| Material | Steel, Plastic |
| Metal Sheet Thickness | VESA panel: 1.5mm cold-rolled steel |
| Surface Finish | Powder Coating |
| Dimensions | 907 x 626 x 2032mm (35.7″ x 24.6″ x 80″) |
| Column Size | Two round columns, ⌀45 x 1.0mm x 745mm each |
| Fit Screen Size | 37″-70″ |
| VESA Compatibility | 100×100, 200×200, 300×200, 400×200, 300×300, 400×300, 400×400, 600×400 |
| Maximum Mounting Hole Spread | 600 x 400mm |
| TV Weight Capacity | 45kg (99lbs) |
| Strength Test Rating | 4x rated capacity |
| Tilt Range | +12° to -12° |
| Height Adjustment Range | 108mm (4.3″) |
| Equipment Shelf Weight Capacity | 5kg (11lbs) |
| Camera Shelf Weight Capacity | 5kg (11lbs) |
| Base Type | Casters |
The dual round-column frame is strength-tested to four times the rated capacity, an approximate 180kg static load, before the 45kg commercial figure is approved for the spec sheet. That tested margin covers the combined weight of the panel plus normal handling loads during repositioning, not just the panel alone at rest.
The 108mm range is sized for this cart’s 37″-70″ panel class and its lower default mounting height, unlike the 1200-1600mm telescoping range on VSYS’s large-format carts built for taller installs. Projects needing a wider height range should specify one of the dual-column carts instead.
Yes. It mounts on its own support arm above the panel bracket, separate from both the display and the lower equipment shelf, so a camera keeps a consistent working position even if the panel tilt or the equipment shelf load changes.
100x100mm up to a 600x400mm maximum hole spread across eight patterns, covering most 37″-70″ commercial panels. The 1.5mm cold-rolled VESA plate itself is rated steel, not a thinner stamped bracket, at every pattern in that range.
No, it’s built as a single-screen cart with one VESA bracket and one dedicated camera shelf. Multi-screen or video-wall installs need a different mount category in the VSYS range designed for that load distribution, not a variant of this single-panel SKU.
+12° to -12°, a wider range than most fixed-column carts, which helps when the cart’s mounting height puts the panel below eye level for a seated audience. Tilt is adjusted at the bracket independently of the 108mm height setting.
