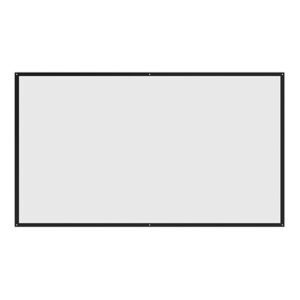

The PEGA 135 is an economy fixed frame projection screen with a 135″ diagonal in 16:9, giving a viewing area of 3.00 x 1.68 m. The matte white fabric has a gain of 1.0 and a 160 degree viewing angle, and the screen mounts directly to a wall. It is the simple, static option for a room where the projection surface does not need to retract.
At 3.00 m wide the viewing area needs a wall of roughly 3.1 m once the 4 cm border on each side is included, so confirm the wall width before ordering. The frame is lightweight with no roller case or motor, which keeps this larger screen simple to fit and free of moving parts.
The PEGA 135 suits larger rooms where the image must reach a bigger audience: lecture rooms, larger meeting spaces, training halls, and home cinemas with a generous wall. At 135 inches it is the larger of the two economy fixed sizes, and it remains a static, low-maintenance installation.
Where the wall must be cleared when the screen is not in use, the electric VSPS screens retract into a case, and where an installation needs a premium look, the PEGA 150 adds a velvet-covered frame.
The PEGA 135 is fixed to the wall. Plan the screen position around the projector’s throw distance and the room’s seating, and check that the wall can carry the frame at the chosen height. Allow for the 4 cm border when aligning the projected image to the viewing area.
| Product Category | Fixed Frame Projection Screen |
| Build Class | Economy |

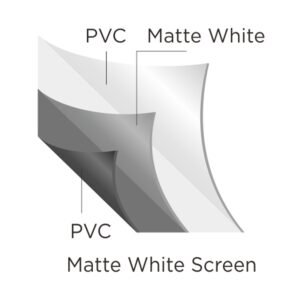

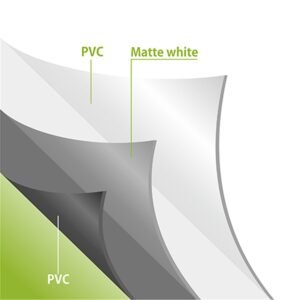

| Screen Material | Matte white fabric (PVC) |
| Screen Size (Diagonal) | 135″ (16:9) |
| Viewing Area (W x H) | 3.00 m x 1.68 m |
| Top Border | 4 cm (1.6″) |
| Bottom Border | 4 cm (1.6″) |
| Side Border | 4 cm (1.6″) |
| Gain | 1.0 |
| Viewing Angle | 160 degrees |
| Installation | Wall mounted |
| Certification | RoHS |
The PEGA 135 has a 135″ diagonal in a 16:9 ratio, with a viewing area of 3.00 m by 1.68 m. A 4 cm border sits on all four sides of that area, so the projected image should be sized to the viewing area rather than to the outer frame.
It has a gain of 1.0 and a 160 degree viewing angle. A gain of 1.0 means the matte white fabric reflects the image evenly without brightening it, which keeps colours neutral and gives wide seating coverage in a room with controlled light.
No. It is a fixed frame screen with no motor, roller case, or controls, so the surface is always in place. For a screen that retracts into a case, the VSYS electric screens such as the VSPS120-M and VSPS135-M are the retractable alternatives.
It is wall mounted. Choose the position from the projector’s throw distance and the room’s seating plan, and confirm the wall can carry the frame. The frame is lightweight, which keeps installation simple, but it still needs secure fixings suited to the wall construction.
They share the same matte white fabric, 1.0 gain, 160 degree viewing angle, and 4 cm border. The PEGA 135 has a 3.00 m by 1.68 m viewing area, while the PEGA 120 has 2.65 m by 1.49 m. Choose the PEGA 135 when the wall and the audience are larger.
