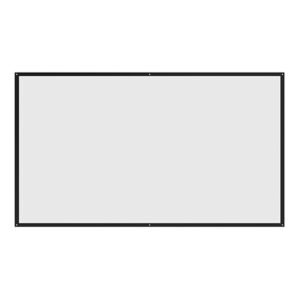

The PEGA 120 is an economy fixed frame projection screen with a 120″ diagonal in 16:9, giving a viewing area of 2.65 x 1.49 m. The matte white fabric has a gain of 1.0 and a 160 degree viewing angle, and the screen mounts directly to a wall. It is the simple, static option for a room where the projection surface does not need to retract.
At 2.65 m wide it is the smaller of the two economy PEGA sizes, a good fit for meeting rooms and classrooms where a wall about 3 m wide is available. A 4 cm border runs around all four sides, and the frame is lightweight with no roller case or motor, so the screen is always ready with nothing to retract or service.
The PEGA 120 suits rooms where the projection surface is always in use: classrooms, meeting rooms, training rooms, and home cinemas. At 120 inches it is the entry size for the economy fixed range, with the simplest and lowest-cost installation of the screen types in the VSYS lineup.
Where the wall must be cleared when the screen is not in use, the electric VSPS screens retract into a case, and where an installation needs a premium look, the PEGA 150 adds a velvet-covered frame.
The PEGA 120 is fixed to the wall. Plan the screen position around the projector’s throw distance and the room’s seating, and check that the wall can carry the frame at the chosen height. Allow for the 4 cm border when aligning the projected image to the viewing area.
| Product Category | Fixed Frame Projection Screen |
| Build Class | Economy |

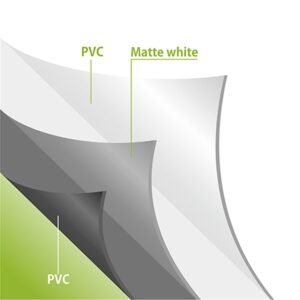

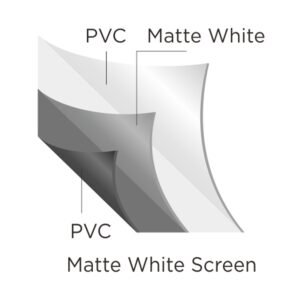

| Screen Material | Matte white fabric (PVC) |
| Screen Size (Diagonal) | 120″ (16:9) |
| Viewing Area (W x H) | 2.65 m x 1.49 m |
| Top Border | 4 cm (1.6″) |
| Bottom Border | 4 cm (1.6″) |
| Side Border | 4 cm (1.6″) |
| Gain | 1.0 |
| Viewing Angle | 160 degrees |
| Installation | Wall mounted |
| Certification | RoHS |
The PEGA 120 has a 120″ diagonal in a 16:9 ratio, with a viewing area of 2.65 m by 1.49 m. A 4 cm border sits on all four sides of that area, so the projected image should be sized to the viewing area rather than to the outer frame.
It has a gain of 1.0 and a 160 degree viewing angle. A gain of 1.0 means the matte white fabric reflects the image evenly without brightening it, which keeps colours neutral and gives wide seating coverage in a room with controlled light.
No. It is a fixed frame screen with no motor, roller case, or controls, so the surface is always in place. For a screen that retracts into a case, the VSYS electric screens such as the VSPS120-M and VSPS135-M are the retractable alternatives.
It is wall mounted. Choose the position from the projector’s throw distance and the room’s seating plan, and confirm the wall can carry the frame. The frame is lightweight, which keeps installation simple, but it still needs secure fixings suited to the wall construction.
They share the same matte white fabric, 1.0 gain, 160 degree viewing angle, and 4 cm border. The PEGA 120 has a 2.65 m by 1.49 m viewing area, while the PEGA 135 steps up to 3.00 m by 1.68 m. Choose by the available wall width and the audience size.
