| Product Category | Full-Motion TV Wall Mount |
| Rank | Standard |
| Material | Steel |
| Metal Sheet Thickness | Bracket Arm THK=2mm cold-rolled sheet, VESA Panel THK=2mm cold-rolled sheet, Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.079" cold-rolled sheet, VESA Panel THK=0.079" cold-rolled sheet, Wall Plate THK=0.12" pickling sheet) |
| Pipe Size | 50x25x1.5mm Square Steel Tube (2"x0.98"x0.059" Square Steel Tube) |
| Surface Finish | Powder Coating |
| Color | Fine Texture Black |
| Dimensions | 703x1010x630mm (27.7"x39.8"x24.8") |
| Fit Screen Size | 60"-120" |
| Fit Curved TV | Yes |
| Mounting Hole Pattern | VESA Only |
| VESA Compatible | 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400, 800x400, 800x600, 900x600 |
| Max. Mounting Hole | 910x610 |
| Weight Capacity | 120kg (264lbs) |
| Strength Tested | 3 Times Approved |
| Profile | 75~703mm (3"~27.7") |
| Tilt Range | +5°~-15° |
| Swivel Range | +60°~-60° |
| Screen Level | +5°~-5° |
| Screen Freely Tilting | Yes |
| Installation | Solid Wall, Double Stud (406mm/450mm/600mm) |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| Direction Indicator | Yes |
| Cable Management | Yes |
| Bubble Level | Hook-on Bubble Level (Included in Components Package) |
| Accessory Kit Package | Compartment Polybag |

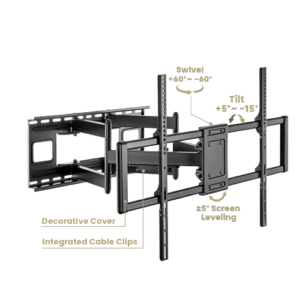

Heavy-duty arms provide strong support for larger and heavier TVs up to 120kg, it basically holds all types of TVs from 60” to 120”. TV installation and removal are made easy through a unique quick-release mechanism. Toolless tilting delivers optimal viewing angles. Integrated cable management creates a clean appearance.
TV Bracket , Full Motion TV Wall Mount , Swivel TV Wall Mount , Articulating TV Wall Mount , Large TV Wall Mount
Tell us about your project and our team will recommend the right mounting solution for your display or video wall installation.
