| Product Category | Tilt TV Wall Mount |
| Rank | Standard |
| Material | Steel, Plastic |
| Metal Sheet Thickness | Bracket Arm THK=2mm cold-rolled sheet, Wall Plate THK=2mm cold-rolled sheet (Bracket Arm THK=0.079" cold-rolled sheet, Wall Plate THK=0.079" cold-rolled sheet) |
| Surface Finish | Powder Coating |
| Color | Fine Texture Black |

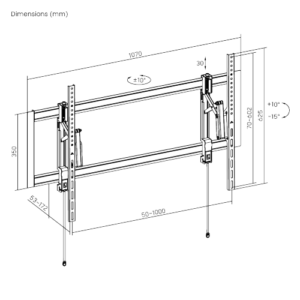

| Dimensions | 172x1070x625mm (6.8"x42.1"x24.6") |
| Fit Screen Size | 55"-105" |
| Fit Curved TV | Yes |
| Mounting Hole Pattern | VESA & Universal |
| VESA Compatible | 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400, 800x400, 600x600, 800x600, 900x600, 1000x600 |
| Max. Mounting Hole | 1000x602 |
| Weight Capacity | 80kg (176lbs) |
| Strength Tested | 4 Times Approved |
| Profile | 53~172mm (2.1"~6.8") |
| Tilt Range | +10°~-15° |
| Swivel Range | +10°~-10° |
| Screen Level | 30mm (1.2") |
| Screen Freely Tilting | Yes |
| Installation | Solid Wall, Double Stud (406mm/450mm/600mm) |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| Direction Indicator | Yes |
| Cable Management | No |
| Anti-theft | Yes |
| Bubble Level | Hook-on Bubble Level (Included in Components Package) |
| Accessory Kit Package | Normal/Ziplock Polybag, Compartment Polybag |
| Certification | UL |
| Silk Screen | Can be silkscreen printed |

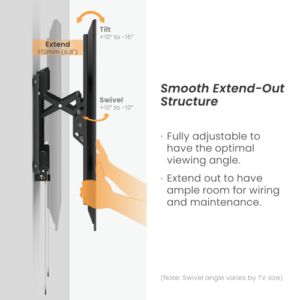

Made for large-size TVs, LP80-610T has an extraordinary supporting ability, holding a TV up to 105″ in size and 80kg (176lbs) in weight. It also features a smooth, user-friendly adjustment experience, allowing users to effortlessly extend/retract a big TV from/to the wall. The wide tilting range of +10° to -15° makes the product suitable for mounting above the fireplace or cabinets. The sliding design makes TV positioning a quick and easy job. Besides, LP80-610T has an anti-theft structure, which makes it a good choice for public places as well.
