| Product Category | Fixed TV Wall Mount |
| Rank | Standard |
| Material | Steel |
| Metal Sheet Thickness | Bracket Arm THK=1.8mm cold-rolled sheet, Wall Plate THK=1.8mm cold-rolled sheet (Bracket Arm THK=0.071" cold-rolled sheet, Wall Plate THK=0.071" cold-rolled sheet) |
| Surface Finish | Powder Coating |
| Color | Fine Texture Black |

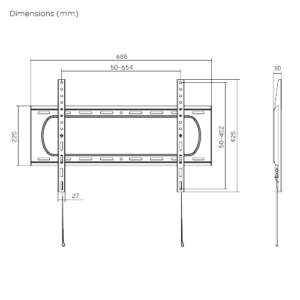

| Dimensions | 30x685x425mm (1.2"x27"x16.7") |
| Fit Screen Size | 37"-86" |
| Fit Curved TV | Yes |
| Mounting Hole Pattern | VESA & Universal |
| VESA Compatible | 50x50, 75x75, 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x300, 600x200, 400x400, 600x300, 600x400 |
| Max. Mounting Hole | 654x402mm |
| Weight Capacity | 80kg (176lbs) |
| Strength Tested | 4 Times Approved |
| Profile | 30mm (1.2") |
| Installation | Solid Wall, Double Stud (406mm/450mm/600mm) |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| AV Component Shelf | No |
| Direction Indicator | Yes |
| Cable Management | No |
| Anti-theft | No |
| Bubble Level | Hook-on Bubble Level (Included in Components Package) |
| Accessory Kit Package | Normal/Ziplock Polybag, Compartment Polybag |
| Silk Screen | Can be silkscreen printed |

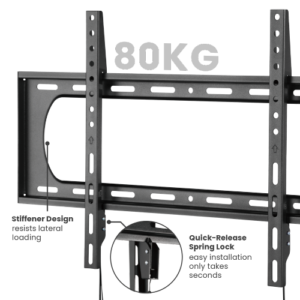

To address the gap in the niche market of heavy-duty large-sized TV wall mounts, the LP73-46F Affordable Heavy-Duty TV Wall Mount is a reasonable solution. A stiffener structure levels the weight capacity up to 80kg/176lbs to firmly hold 37’’~86’’ TVs. Ample space in the center is perfect for installing the socket outlet and concealing all the messy cables. A quick-release spring lock allows TV removal quick and easy and only takes seconds to install. Choose LP73-46F to grasp more market share quickly!
Heavy-Duty TV Wall Mount , TV Mount , TV Wall Mount , TV Bracket
Tell us about your project and our team will recommend the right mounting solution for your display or video wall installation.
