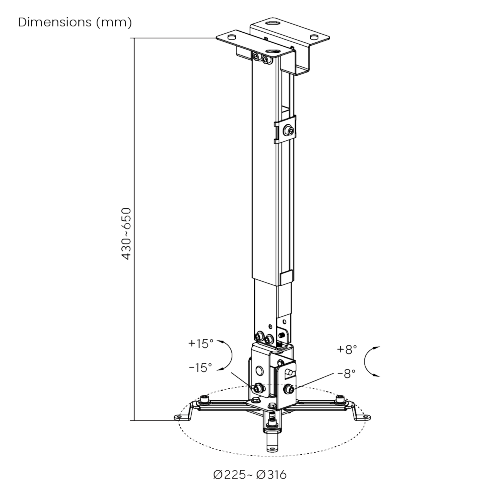

The VPM-2G is a universal projector mount rated to 20kg, positioned as VSYS’s economy-tier option and the only projector mount in the range rated for both solid-wall and ceiling installation from the same hardware. A telescopic center column extends from 430mm to 650mm, and the head carries +15° to -15° tilt plus +8° to -8° swivel, a narrower adjustment range than the heavier-duty VPM-20-H and VPM-20-02L, reflecting the lighter 20kg-class projector this model targets.
Unlike the detachable-head design on VSYS’s 35kg-class mounts, the VPM-2G uses a fixed single-piece column with the projector interface plate built into the lower end, a simpler and more economical construction appropriate for smaller classroom and meeting-room projectors rather than large-venue units.
The 20kg rating and dual wall-or-ceiling mounting capability put the VPM-2G in standard classrooms, training rooms, and meeting rooms running lighter commercial or education-class projectors, where the room layout, not projector weight, decides whether a wall or ceiling mount makes more sense. Having both options on one SKU simplifies stock and specification for integrators handling mixed room layouts across a single project.
It also suits budget-conscious UAE education and SMB deployments where the 35kg-class detachable-head mounts (VPM-20-H, VPM-20-02L) would be over-specified for a lighter projector. Where the projector exceeds 20kg or the room has a high or vaulted ceiling beyond the 650mm reach, the heavier-duty VSYS projector mounts are the correct specification instead.
The VPM-2G mounts to either a solid wall or ceiling structure using the same base hardware, with the telescopic column extended to the measured distance within the 430-650mm range before the projector is attached to the interface plate at the column’s lower end. Tilt and swivel are set once the projector is in position, checking the beam against the screen. Given the moderate weight class, this model is more approachable to self-install than VSYS’s 35kg-class mounts, though professional installation remains available UAE-wide on request.
| Product Category | Universal Wall & Ceiling Projector Mount |
| Build Class | Economy |
| Material | Steel |
| Surface Finish | Powder Coating, Matte Black / Gloss Grey / Matte White |
| Dimensions | 237 x 203 x 650mm (9.3″ x 8″ x 25.6″) |
| Weight Capacity | 20kg (44lbs) |
| Mounting Range | 225-316mm (8.9″-12.4″) |
| Extension Range | 430-650mm (16.9″-25.6″) |
| Tilt Range | +15° to -15° |
| Swivel Range | +8° to -8° |
| Installation | Solid Wall or Ceiling Mounted |
| Cable Management | Yes, integrated |
Yes, it’s the only mount in the VSYS projector range built for both from the same hardware. The base plate and telescopic column work identically whether fixed to a solid wall or a ceiling structure, which simplifies stock and specification for integrators handling mixed room layouts.
The VPM-2G is the economy-tier option: 20kg rated versus 35kg, a fixed single-piece column instead of a detachable head, and a narrower +15°/-15° tilt range versus +20°/-20°. Choose the VPM-2G for lighter classroom and meeting-room projectors, and the heavier-duty models for large-venue units.
430mm to 650mm, sized for standard classroom and meeting-room ceiling and wall-offset distances rather than the extended reach of the VPM-20-02L. Confirm the target installation distance falls within this range before ordering, since this model doesn’t have the longer telescopic option available on VSYS’s 35kg-class mounts.
Matte black, gloss grey, or matte white, giving more finish flexibility than the two-option black-or-white choice on the VPM-20-02L. Specify the finish that matches the classroom or meeting-room’s existing fixtures and ceiling color when ordering, since the mount stays visible once installed.
Yes, integrated cable management keeps HDMI and power runs organized along the column rather than left loose, consistent with the rest of the VSYS projector mount range regardless of weight class or column design, for a tidier finished installation.
It’s more approachable to self-install than VSYS’s 35kg-class mounts given the moderate 20kg weight class, but professional installation remains available UAE-wide on request through VSYS for classrooms, training rooms, and meeting-room deployments where consistency across multiple rooms matters more than install speed.
