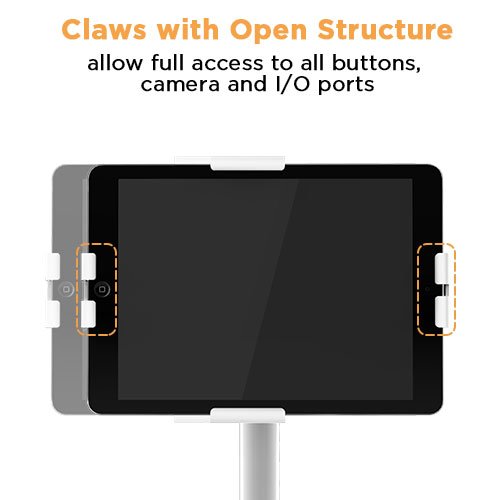

The VPAD33-01 secures a 7.9″-11″ tablet to a freestanding or bolt-down floor base using an open-claw holder structure, EVA foam padding at the contact points, and a locking screw that prevents the tablet from being lifted out without the matching key. The holder itself adjusts 0-400mm to fit the specific tablet’s width, and the open-claw design leaves the tablet’s buttons, camera, and I/O ports accessible without removing it from the mount.
Height adjusts across a 790-1190mm range on the steel-and-plastic pole, with +20° to -110° tilt and full +180°/-180° screen rotation once positioned. The panel is removable for cleaning or tablet swaps, and the base ships as either freestanding (weighted base) or bolt-down, depending on whether the install location allows floor anchoring.
The locking screw and bolt-down base option put the VPAD33-01 in public-facing, unattended-tablet applications: retail and hospitality check-in kiosks, museum or exhibition information points, and reception-desk visitor sign-in stations where the tablet needs to stay physically attached and functional between staff shifts. The open-claw design keeping ports and buttons accessible matters for these installs specifically, since a fully enclosed kiosk shell can block the charging port or camera a public-facing app actually needs.
The 1kg weight rating and universal 7.9″-11″ sizing cover the tablet class typically deployed for this use case rather than larger digital-signage panels, and the freestanding-vs-bolt-down base choice should be made at spec stage based on whether the venue allows permanent floor fixings or needs a relocatable stand instead.
The base installs first, either freestanding on its own weighted footprint or bolted to the floor through the base plate, depending on the site’s anchoring requirements. The pole height is then set within the 790-1190mm range, and the open-claw holder is adjusted to the tablet’s actual width within its 0-400mm range before the tablet is seated and the anti-theft locking screw engaged. The removable panel design means a tablet swap later doesn’t require re-adjusting the claw width, only removing and reseating the panel.
| Product Category | Anti-Theft Tablet Kiosk Floor Stand |
| Material | Steel, Plastic |
| Surface Finish | Powder Coating |
| Color | Matte Black, Matte White |
| Dimensions | 220 x 300 x 1325mm (8.7″ x 11.8″ x 52.2″) |
| Applicable Device | Universal, Most 7.9″-11″ tablets |
| Weight Capacity | 1kg (2.2lbs) |
| Tilt Range | +20° to -110° |
| Screen Rotation | +180° to -180° |
| Height Range | 790-1190mm (31.1″-46.9″) |
| Adjustable Holder Width | 0-400mm (0″-15.7″) |
| Installation | Freestanding, Bolt-Down Base |
| Cable Management | Yes |
| Panel Removable | Yes |
| Security | Anti-Theft Locking Screw |

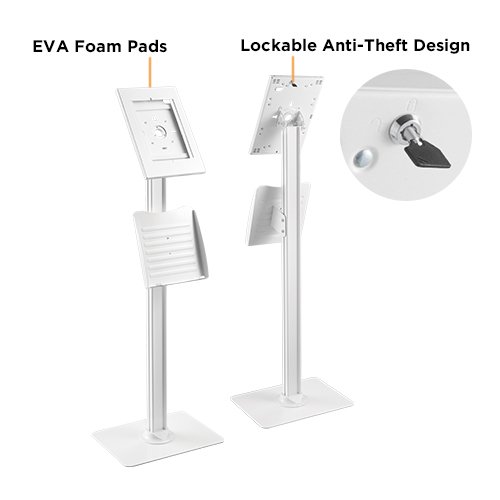

A locking screw secures the tablet’s removable panel in place, requiring the matching key to release it, which prevents casual removal in unattended public-facing settings like kiosks or reception desks. Combined with the bolt-down base option, this secures both the tablet and the stand itself against removal or tipping.
Yes, the open-claw holder structure leaves buttons, camera, and I/O ports accessible without removing the tablet from the mount, unlike a fully enclosed kiosk shell. This matters for public-facing apps that need ongoing access to the charging port or camera while the tablet stays secured in place.
Choose bolt-down where the venue allows permanent floor fixings and maximum tip resistance matters, such as a busy retail or museum floor. Choose freestanding where the stand needs to be relocatable or the floor can’t be drilled. Both use the same pole, holder, and locking hardware, only the base differs.
Most 7.9″ to 11″ tablets, with the open-claw holder adjustable from 0mm to 400mm in width to match the specific model. Confirm the target tablet’s actual width and thickness against the holder’s adjustment range before ordering, since not every 11″ tablet has the same case dimensions.
Yes, the panel holding the tablet is removable, so a tablet swap or deep clean doesn’t require disassembling the whole stand or re-adjusting the claw width from scratch. The anti-theft locking screw still needs to be released with its key before the panel comes free.
